Pico Technology A3000 Series A3076 Oscilloscope Probe, Active Type, 750MHz, 10:1

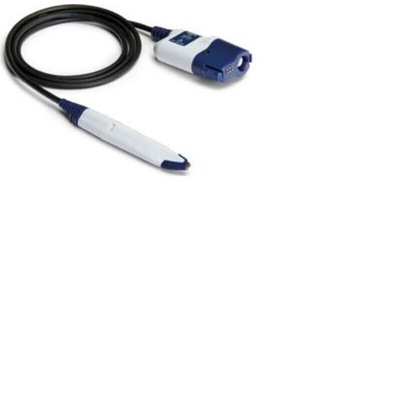

The Pico A3076 Series high-impedance active oscilloscope probe has minimal impact on the signal being probed with maximal signal transfer to the PicoScope 6000E Series. Its ergonomic design allows comfortable handheld use with a button to start and pause capturing in PicoScope 6.

The Intelligent Probe Interface powers the probe from the scope and facilitates automatic probe detection and unit scaling. The probe can set scope attenuation and automatically switch to 50 Ω input impedance.

With an input resistance of 1 MΩ and capacitance of 0.9 pF, this active probe offers high input impedance up to 750 MHz. These characteristics make this probe the most versatile for many of your day-to-day measurements

Features and benefits

For use with PicoScope 6000E Series

Bandwidth: DC to 750 MHz into 50 Ω load. DC to 500 MHz nominal system bandwidth with PicoScope 6000E 500 MHz oscilloscope
Rise time: < 466 ps
DC gain accuracy: ±3% of full scale over 15 to 40°C, after 20-minute warmup
Input characteristics: 1 MΩ || 0.9 pF
Attenuation: 10:1

Input voltage
Full scale: ±5 V (DC + AC peak)
Absolute max. voltage: ±30 V (DC + AC peak) subject to frequency derating
DC offset range: ±10 V

General
Probe detection: Automatic with any oscilloscope with Pico Intelligent Probe Interface (IPI)
Operating temperature range: 0 to 50 °C. (15 to 40 °C for quoted accuracy after 20-minute warmup)

Applications

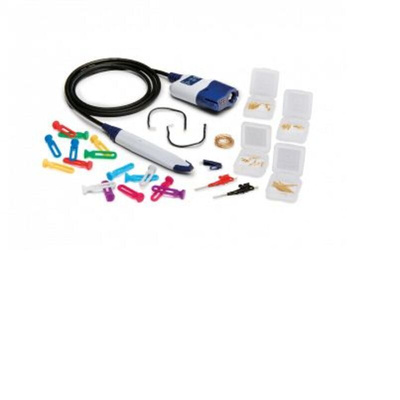

Supplied with/Kit contains:

TA469 Fixed probe tip x 10
TA501 Sprung probe tip x 10
TA470 Ground blade (2 sizes x 2 of each)
Ground lead x 2
Channel markers (8 colors x 2 of each)
Solder-in cable pin x 10
Gold-plated copper wire 0.3 mm
SMD pincer, black
SMD pincer, red
Joggle adaptor
Carry case
Quick Start Guide

What other Probes are available in this Pico range?

Pico A3136 1.3 GHz 10:1 active probe

Approvals/Certification

Safety compliance EN 61010-031:2015
EMC compliance Tested to EN61326-1:2013 and FCC Part 15 Subpart B
Environmental approvals RoHS, WEEE, REACH

Datasheet - A3076
