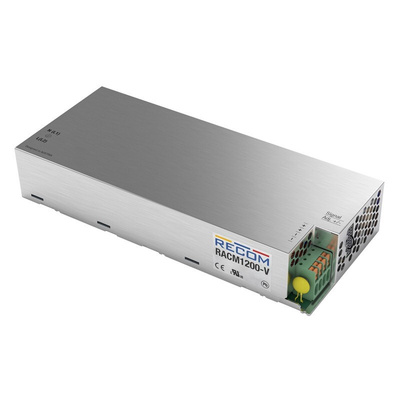

Recom Switching Power Supply, RACM1200-48SAV/ENC, 48V dc, 25A, 1.2kW, 1 Output, 85 → 264V ac Input Voltage

RECOM Switching Power Supply, Enclosed Frame, 90% Efficiency - RACM1200-VSeries - RACM1200-48SAV/ENC

Convert your AC power source to the 48V DC output your device needs with this RECOM switching power supply. The baseplate transfers heat so that you can use up to 1000W of continuous output power. Thanks to efficiency exceeding 90% from a 15% load, you can use your equipment efficiently with minimal power loss through heat. A wide operating temperature range between -40°C and +80°C means you can rely on this component to perform safely in demanding industrial environments. As it meets industrial and medical standards, you can use it in high-performance and sensitive systems.

Features & Benefits

• Boost mode allows you to increase output power to 1200W for 10 seconds
• Compact 228 (L) x 96.2 (W) x 40mm (H) size fits into smaller equipment and computer systems
• Input voltage range from 85 to 264V AC suits common power sources

Applications

• Medical instruments
• IT systems
• Household appliances
• Industrial equipment

What's an enclosed power supply?

An enclosed power supply is protected by a metal frame to keep components in place and protect users from electric shocks.

Datasheet - RACM1200-48SAV/ENC
