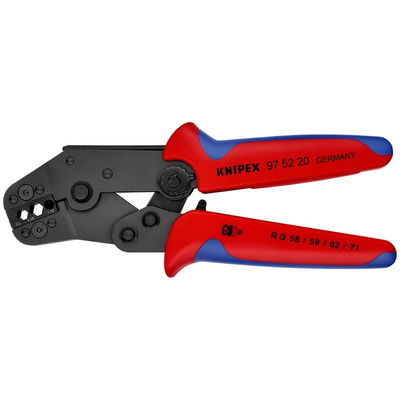

97 52 20, Knipex Crimping Tool, 195 mm Overall, Обжимные клещи

Crimping pliers for coaxial connectors RG 58 / 59 / 62 / 71 / 223

Features and benefits

- Amplified force thanks to the toggle gearing for less tiring work
- Good grip thanks to its 20° angled head, low weight and short shape
- High-quality repeat crimping thanks to integrated lock (automatic release mechanism)
- Crimping pressure precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reducing operation
- Low weight
- Compact design
- Ergonomic handles

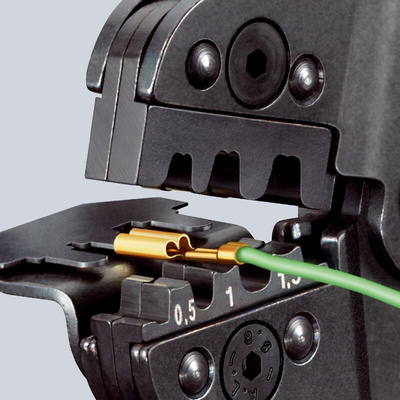

- Optionally available: positioner for non-insulated open-barrel connectors
- Capacities mm² / AWG : for KOAK, BNC and TNC coaxial cable connectors for RG 58 / 59 / 62 / 71 / 223, SW for contact pin: 1.72 mm, SW for RG58 shield: 5.4 mm, SW for shielding RG59, 62 and 71: 6.48 mm
- Material: Special grade chrome vanadium electrical steel, oil quenched

Typical applications

Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop

Product Maintenance

- To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked. - Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.

*Use a light non-mineral oil
