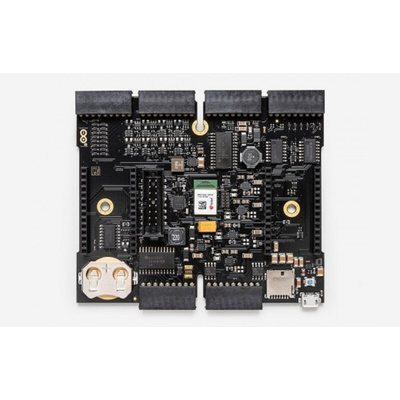

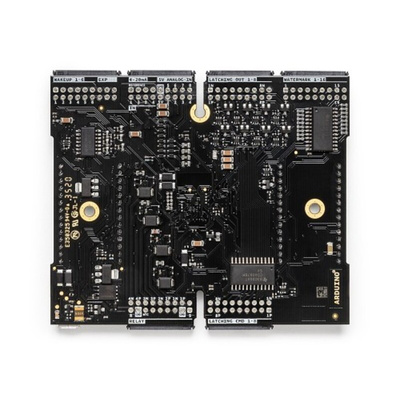

AKX00034, Arduino Arduino Edge Control

The Arduino Edge Control board is designed to address the needs of precision farming. It provides a low power control system, suitable for irrigation with modular connectivity. The board is compatible with MKR Boards 2G/3G/CatM1/NBIoT, LoRa, Sigfox and Wi-Fi/BT connectivity.

Nina B306 Module - 64 MHz Arm Cortex-M4F (with FPU)
6 x edge sensitive wake up pins
16 x hydrostatic watermark sensor input
8 x 0-5V analogue inputs
4 x 4-20mA inputs
8 x latching relay command outputs with and without drivers
4 x 60V/2.5A galvanically isolated solid state relays
Wireless - Bluetooth (BLE 5 via Cardio stack, BLE 4.2 via Arduino Stack)
Full-speed 12 Mbps USB
Arm Crypto Cell CC310 security subsystem
QSPI/SPI/TWI/I²S/PDM/QDEC
1 MB internal Flash memory, 2MB on-board QSPI
Low Power
12V Acid/lead SLA Battery Supply
Class A safety

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
