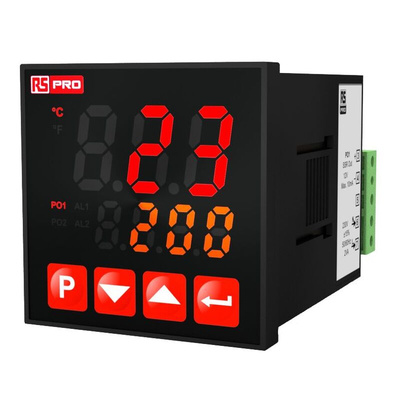

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 100 → 240 V Supply

RS PRO PID Temperature Controllers

Introducing a range of high-quality PID temperature control units from the trusted brand RS PRO. These controllers essentially use a control loop feedback that ensures the output required is delivered. By setting the controller you can keep the output constant based on the feedback from a temperature sensor.

Upon inspection, they are simple to set up, easy to use, and accurately control the temperatures of various equipment. Our PID temperature control units are standalone devices typically found in automated processes.

Features and Benefits

• 3 Digits process (PV) and 4 Digits set (SV) display


• Programmable ON/OFF, P, PI, PD, and PID control forms


• Adaptation of PID Coefficients to the system with self-tune and auto-tune


• Programmable heating or cooling functions for control output


• Selectable alarm functions for alarm output


• Dimensions: 48 x 48 mm.

Specification

• Process Input: TC, RTD


• Thermocouple (TC): J, K, R, S, T, and L(IEC584.1) (ITS90)


• Thermo-resistance(RTD): Cu-50 and PT-100 (IEC751) (ITS90)


• Operating Temperature: 0 °C to +50 °C


• Humidity: 90 % max. (none condensing)


• Protection Class: IP65 at the front, IP20 at rear


• Supply Voltage: 24 V or 100 V to 240 V ac (-%15, +%10) 50/60Hz


• Alarm Output: Relay (5A@250V at resistive load)

RS PRO PID Temperature Control Unit Variants - 100 V to 240 V ac

• Process O/P: SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8113


• Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8114

RS PRO PID Temperature Control Unit Variant -24V

• Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8116

Applications

• Automation & Control


• Manufacturing


• Industrial Control

FAQs

What does PID mean?
PID means Proportional Integral Derivative
