RS PRO Panel Mount On/Off Temperature Controller, 77 x 35mm 1 Input, 1 Output Relay, 24 V Supply Voltage ON/OFF

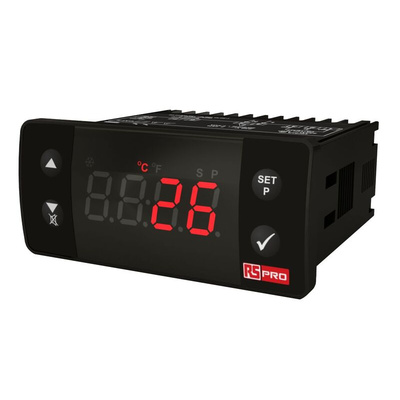

RS PRO Digital On/Off Temperature Controller - ESM-3710-N

Introducing the RS PRO digital On /Off temperature controllers. These digital devices are the ideal temperature control solution for applications that require a specific temperature to be maintained. The compact devices can be easily installed on a DIN rail, providing a high-quality and reliable temperature control system that is easy to use.

Why would you choose this controller?

The RS PRO temperature controller features heating and cooling functions, offering versatility suitable for a range of applications. The adjustable temperature off-set and on/off feature of the temperature controller ensures the device will switch on or off automatically to reach the setpoint temperature or prevent it from exceeding.

Features and Benefits

• Digital ON/OFF Temperature Control Device


• 4 Digits Display - Adjustable temperature offset


• 2-Wire PT-100 Input


• Selectable heating or cooling function


• Selection of operation with hysteresis


• Adjustable temperature offset


• Set value low limit and set value high limit boundaries


• Operation selection of compressor operates continuously, stops or operates periodically in case of sensor defect


• Compressor protection delays


• Adjustable internal buzzer according to sensor defect status


• Password protection for programming section


• Installing parameters using PROKEY


• Remote access, data collecting and controlling with Modbus RTU


• Having CE mark according to European Norms

Dimensions

RS PRO Digital On/Off Temperature Controller Variants

• PT-100, (IEC751) (ITS 90) 24 V = RS stock no:222-8122


• Thermocouple Type K: (IEC584.1) (ITS 90), 230 V = RS stock no:222-8123

Applications

• HVAC systems


• Ovens


• Incubators


• Automotive


• Storage solutions

FAQs

Why use an On /Off Temperature Controller?
Used for monitoring purposes in heating environments, on-off temperature controllers prevent rapid increases in temperature that could cause damage. These controllers are often used where there isn't a need for precision temperature control, but where a system is unable to handle continuous interruptions. A typical example of an on-off controller is a thermostat in a system, if the temperature drops below the pre-set level the system is switched on. They can protect against a system of over-heating or over-cooling and have an 'on' 'off' option with no middle state.
Does this display Celsius or Fahrenheit?
This temperature controller displays temperatures in Celsius and Fahrenheit.
Can it be password protected?
Yes, this controller features password protection.
Can this control heating and cooling?
The RS PRO temperature controller is suitable for heating and cooling control.

RS PRO Datasheet
