RS PRO Panel Mount On/Off Temperature Controller, 48 x 48mm 1 Input, 1 Output Relay, 100 → 240 V Supply Voltage

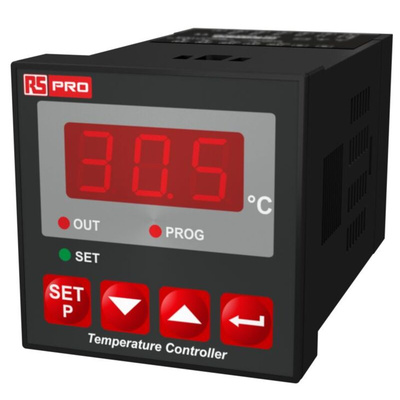

RS PRO Digital On/Off Temperature Controller - ESM-4410

Introducing the RS PRO digital On /Off temperature controller. This digital device is the ideal temperature control solution for applications that require a specific temperature to be maintained. The compact device can be easily installed on a DIN rail, providing a high-quality and reliable temperature control system that is easy to use.

Why would you choose this controller?

The RS PRO temperature controller features heating and cooling functions, offering versatility suitable for a range of applications. The adjustable temperature off-set and on/off feature of the temperature controller ensures the device will switch on or off automatically to reach the setpoint temperature or prevent it from exceeding.

Also known as

Bang-Bang Controller

Features and Benefits

• 3 Digits display


• Selectable heating and cooling function


• K Type Thermocouple


• ON/OFF control form


• Operating type selection with hysteresis


• Adjustment of temperature offset value


• Minimum pulling time adjustment for control outputs


• Set value low limit and set value high limit boundaries


• Password protection for programming mode


• Supply Voltage: 100-240V ac 50/60Hz


• Protection Class: IP65 at front, IP20 at rear


• Dimensions: 48 mm x 48 mm

Input

• Thermocouple(TC): K (IEC 584.1) (ITS90)

Output

• Output-1: Relay (7A@250V at resistive load) or SSR Driver Output

Application

• Textiles


• Automotive


• Machinery


• Industrial

Approvals

GOST-R, CE

RS PRO Datasheet
