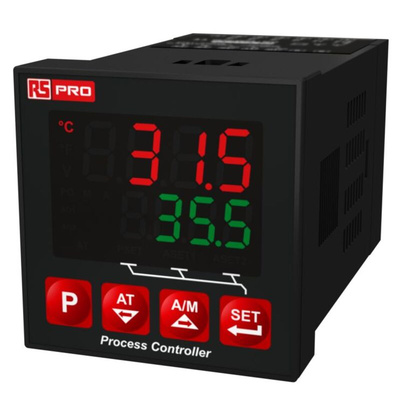

Output Type, RS PRO DIN Rail PID Temperature Controller, 48 x 48mm 3 Input, 3 Output Relay, SSR, 24 V Supply Voltage ON/OFF, PID

2228147
Производитель: RS PRO
Цена за шт.
41301.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Digital Process Controllers - ESM 4430 Series
Introducing a range of high-quality digital process controller units from the trusted brand RS PRO. These universal input and dual SET PID controllers are designed for controlling temperatures, measuring temperatures, and any process values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features such as programmable heating and cooling. Our process controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy.
Why would you choose these controllers?
The ESM-4430 series are universal input digital temperature controllers with 4 digits process and 4 digits process set value display. Each controller has manual or automatic mode selection for control outputs, auto-tune and self-tune PID.
Also known as
Bang-Bang Controllers
Features and Benefits
ulliESM 4430 Series/liliAuto-tune and Self-tune PID/liliDual or multi point calibration for dc Voltage/Current input/liliBumpless transfer/lili4 Digits process (PV) and 4 Digits set (SV) display/liliUniversal process input (TC, RTD, mVdc, Vdc, mAdc) /liliConfigurable ON/OFF, P, PI, PD, and PID control forms/liliManual/Automatic mode selection for control outputs/liliProgrammable heating, cooling and alarm functions for control outputs/liliOperating Temperature: 0 to 50 °C/liliDimensions: 48 mm x 48 mm/li/ul
Inputs
ulliUniversal Input TC, RTD, Voltage/Current/liliThermocouple (TC): L(DIN 43710) J, K, R, S, T, B, E, and N (IEC 584.1) (ITS90), C (ITS90) /liliThermo-resistance (RTD): PT-100 (IEC751) (ITS90) Input: mV, V, mA /li/ul
Output
ulliStandard Relay Outputs: 2 pieces 5A@250V at resistive load) /liliThey can be programmed as Control or Alarm output/liliSSR Driver Output: Maximum 17mA, Max. 25V/li/ul
RS PRO ESM 4430 Series Variants
ulli100 to 240 V, RS stock no: a href=\"/web/p/products/2228146\""222-8146/a/lili24 V, RS stock no: a href=\""/web/p/products/2228147\""222-8147/a/li/ul
Application
ulliTextiles/liliAutomotive/liliPID Process Control/liliMachine Production/li/ul
CE

RS PRO Datasheet"
Mfr Part No.:
Output Type
Диапазон температур:
0 → +50 °C
Количество входов:
3
Количество выходов:
3
Напряжение питания:
24 V
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
0°C
Размер:
48 x 48mm
Тип входа:
TC, RTD
Тип монтажа:
DIN Rail
Тип управления:
ON/OFF, PID Controller
