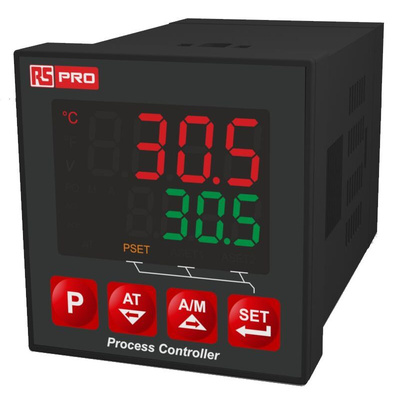

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 3 Input, 3 Output Relay, 24 V Supply Voltage ON/OFF, PID

RS PRO Digital Process Controllers - ESM 4435 Series

Introducing a range of high-quality digital process controller units from the trusted brand RS PRO. These universal input dual SET PID controllers are designed for controlling temperatures, measuring temperatures, and any process values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features such as programmable heating and cooling. Our process controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy.

Why would you choose these controllers?

The ESM-4430 series are universal input digital temperature controllers with 4 digits process and 4 digits process set value display. Each controller has manual or automatic mode selection for control outputs, auto-tune and self-tune PID.

Also known as

Bang-Bang Controllers

Features and Benefits

• ESM 4435 Series


• Colour: Black


• Thermostat Type: Bang-bang, P, PI, PD, PID


• Programmable heating, cooling and alarm functions for control outputs


• Operating Voltage: 24 V DC/AC or 100 to 240 V


• Operating Temperature: 0 to 50 °C


• Max. Temperature Reading: 1700 °C


• Min. Temperature Reading: -200 °C


• Outputs (thermostats): 5 A relay


• No. of relay outputs: 3


• Sensor Type: S, Pt100, T, J, K, R


• Mounting Type: Recess-mount


• Sensor type: PT00, J, K, R, S,T


• IP Rating: Front: IP65 / connection: IP20


• Weight: 170 g

Dimensions

• Recess Depth: 76 mm


• Height. 48 mm x Length.88 mm x Width. 48 mm

Inputs

• Universal Input TC, RTD


• Thermocouple (TC): L(DIN 43710) J, K, R, S, T, B, E, and N (IEC 584.1) (ITS90), C (ITS90)


• Thermo-resistance (RTD): PT-100 (IEC751) (ITS90)


• Voltage/ Current Input Types Selectable by parameters

Output

• Standard Relay Outputs :3 pieces 5A@250V at resistive load)


• They can be programmed as Control or Alarm output) (Electrical Life 100000 operation Full Load)

Application

• Textiles


• Automotive


• PID Process Control


• Machine Production

Approvals

CE
