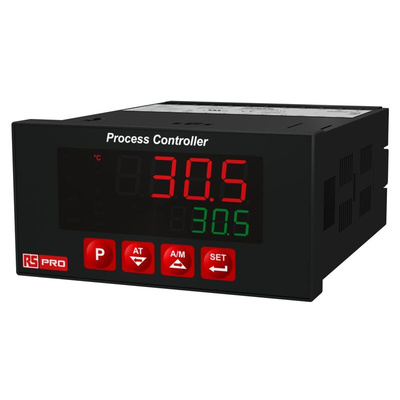

RS PRO Panel Mount PID Temperature Controller, 96 x 48mm 3 Input, 3 Output Relay, SSR, 100 → 240 V Supply

RS PRO Digital Process Controller - ESM 4930 Series

Introducing a high-quality digital process controller unit from the trusted brand RS PRO. This universal input and dual set controller is designed for controlling temperatures, measuring temperatures, and any process values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features such as programmable heating and cooling. Our process controller is available with a 100 to 240 V supply voltage operating with a high degree of accuracy.

Why would you choose this controller?

The RS PRO ESM-4930 is the universal input digital temperature controller with 4 digits process (PV) and 4 digits set (SV) display. This controller has manual or automatic mode selection for control outputs and auto tune and self-tune PID.

Features and Benefits

• Auto-tune and Self-tune PID


• Dual or multi point calibration for dc Voltage/Current input


• Bumpless transfer

Specifications

• 4 Digits process (PV) and 4 Digits set (SV) display


• Universal process input (TC, RTD, mVdc, Vdc, mAdc)


• Configurable ON/OFF, P, PI, PD, and PID control forms


• Manual/Automatic mode selection for control outputs


• Programmable heating, cooling and alarm functions for control outputs


• Supply voltage: 100 → 240 V ac, 50/60 Hz


• Sensor Input: Selectable by configuration parameters L (DIN43710), J, K, R, T, S, B, E, N (IEC584.1) (ITS90)

Dimensions

Applications

• Automation & Control


• Manufacturing


• Industrial Control

Approvals

GOST-R, CE

RS PRO Datasheet
