RS PRO Panel Mount On/Off Temperature Controller, 96 x 96mm 3 Input, 3 Output Relay, SSR, 100 → 240 V Supply

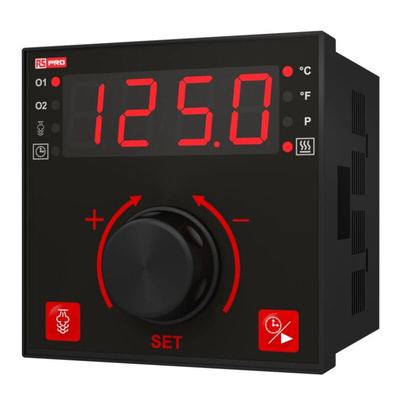

RS PRO Cooking Controller - ESM-9445

Introducing the RS PRO digital cooking controller. This digital device is the ideal temperature control solution for applications that require a specific temperature to be maintained. The RS PRO ESM-9945 is packed with features such as adjustable process offset value, 4 digits display and an adaptation of PID coefficients to the system by auto-tune or self-tune with voiced warning via internal buzzer.

Features and Benefits

• 4 digits display


• Adjustable Process Offset Value


• Programmable ON/OFF, P, PI, PD ve PID control types


• Adaptation of PID coefficients to the system by Auto-Tune/Self-Tune


• Working time selection in minutes or seconds


• Voiced warning via internal buzzer


• Cover switch input


• Steam output


• Dimensions: 96 mm x 96 mm

Environmental Rating and Physical Specification

• Supply Voltage: 100 to 240V ac 50/60Hz


• Operating Temperature: 0 °C to +50 °C


• Humidity: 90 % max. (None condensing)


• Protection Class: IP65 at front, IP20 at rear

Input

• J type Thermocouple Input, J type, K type, R type, S type


• 2 or 3 wire PT 100 Input

Output

• Temperature Control Output: Relay (7A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)


• Time Output: Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)


• Steam Output: Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)

Applications

• Bakery Applications


• Fermentation Cabinets


• Ceramics and Glass ovens


• Industrial fryer


• Incubators

Approvals

AEC, CE
