RS PRO DIN Rail, Surface Mount Timer Relay, 24 → 230V ac, 2-Contact, 0.1s to 100h, 1-Function, SPDT

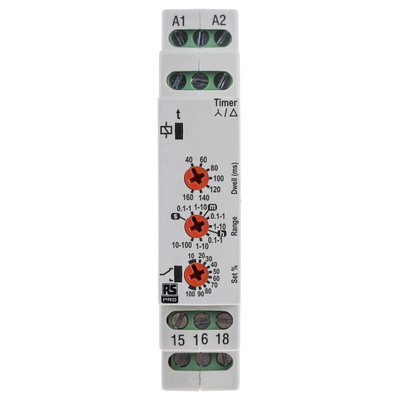

RS PRO Star/Delta Start Timer

RS PRO is proud to introduce the superb Star/Delta Start timer. This device is used in conjunction with external contactors and limits the duration a 3-phase motor runs in Star configuration before switching over to Delta. When power is applied, the output relay remains de-energised for the set time delay period. After the delay has elapsed, the contacts “break” for the set Dwell time, then change over to the energised state.

Features and Benefits

• Timing function: Star/Delta


• 7 Selectable Dwell time settings (40 – 160mS)


• 7 Selectable time ranges (0.1 seconds – 100 hours)


• Fine adjustment of selected time range


• Multi-voltage (24 – 230VAC/12 – 230VDC)


• 1 x SPDT relay output 8A


• Green LED indication for supply / timing status


• Red LED indication for relay status


• IP 20 (Terminal Protections)

Applications

• Control Panels


• Safety Control


• Industrial process control

RS PRO

RS PRO offer a wide selection of Time Relays. Browse our range using the improved filters to locate the ideal solution for your application.

Approvals

• CE, RoHS and C-tick compliant CUL Listed


• Conforms to IEC 61812.


• EMC: Immunity EN 61000-6-2 (EN 61000-4-3 10V/m 80MHz - 2.7GHz)


• Emissions: EN 61000-6-4
