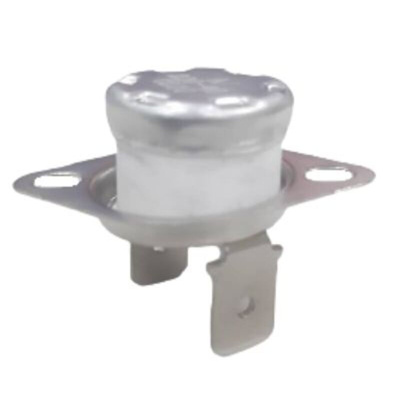

Minimum Temperature, RS PRO NC 15A 125VAC, 16A 250VAC Bi-Metallic Thermostat, Opens at 250°C, Automatic Reset

2228248
Производитель: RS PRO
Цена за шт.
1761.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Bimetal Thermostat Switch/
Introducing the range of RS PRO Bimetal Thermostat Switches, ideal for regulating the temperature inside devices or objects that require temperature management like electrical appliances. The switch is designed with a temperature-sensitive bimetallic disc that is the actuator for the thermally and electrically isolated contacts which open when the ambient or surface temperature increases to the operating snap point of the metal disc.
Features and Benefits:/
ulliThis RS PRO bimetallic thermal control switch is designed for temperature control and regulation in a wide range of electrical products like coffee machines, smoke detectors, heating systems, boilers and much more/liliEach thermostat is inch (12.4 mm) in height, making it a compatible replacement part for a wide range of appliances or for new installations and designs that require temperature sensors/liliThese snap-action thermostats are available in automatic or manual reset options, phenolic, PPS or ceramic housings which offer dustproof performance, and a variety of mounting brackets and terminal options/liliIn addition to this, the switches offer a rapid response time to temperature changes due to the low mass of the disc and the compact size of the actual thermostat switch/liliAvailable as normally closed and normally open types, with thermally and electrically isolated contacts/liliRoHS, REACH, UL/cUL and ENEC17 approved/li/ul
Applications:/
Thermostat sensors or switches are mechanisms that are designed to offer protection from electrical devices when the temperature increases or from overheating and are widely used as a method of temperature control and management. There are several different switch variations that activate a valve or thermal switch, but the most common method is by allowing the contacts of the switch to open when the ambient or surface temperature increases and reaches the snap point of the switch. Thermostatic switches are used in a wide variety of appliances like water heaters, radiators, welders, smoke detectors and much more, and are commonly found in these industries:ulliSensing and instrumentation/liliHVAC/liliAutomotive and industrial/liliComputers and computer peripherals/li/ul
Why RS PRO?/
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards","they re only given the RS PRO seal of approval if we re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
Mfr Part No.:
Minimum Temperature
Конфигурация коммутатора:
NC
Максимальная температура:
+250°C
Мощность контактов:
15A 125VAC, 16A 250VAC
Номинальное напряжение контакта:
16A 250V/15A 125V
Температура закрытия:
210°C
Температура открытия:
250°C
Тип клеммы:
Vertical Tab
Тип сброса:
Automatic
Тип термостата:
Bi-Metallic
Функция переключения:
NC
