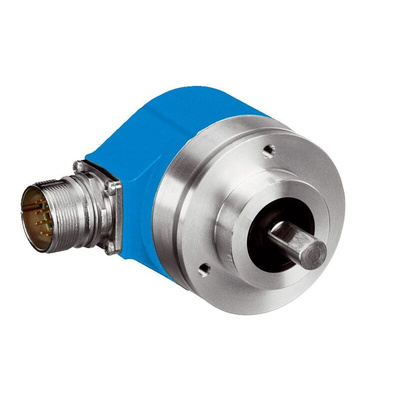

ARS60-H4K00360 Encoder Technology, Sick Absolute Encoder 360 ppr, ARS60-H4K00360

Overview
The modular setup of its CoreTech technology enables the compact ARS60 absolute single turn encoder to provide a customized solution for all applications. All common mechanical variants are available with any number of increments between 2 and 32,768 and are either equipped with an SSI or parallel output, making the ARS60 a universal solution for nearly any application requirements
At a glance
Absolute single turn encoderResolution: up to 15 bits (32,768 increments)Electrical interface: SSI with grey code type or grey cappedElectrical interface: Parallel with grey, grey capped, binary, BCD code typeZero-set functionMechanical interfaces: face mount flange, servo flange, blind and through hollow shaftEnclosure rating: Up to IP66
Your Benefits
Freely programmable resolution (up to 15 bits)Easy zero adjustment directly on the encoder by pressing a button or via sub cable (cable version)Suitable for all mounting methods thanks to the individual mechanical interfacesA versatile base model thanks to the easily exchangeable collets for the blind hollow shaft and through hollow shaftVersions with cable and M23 connector connection in axial and radial designs available
Applications
Electronics and solar industriesTextile machineryPackaging industryHigh-bay warehousesWoodworking machinesMachine constructionAutomotive industryMaterial handling
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
