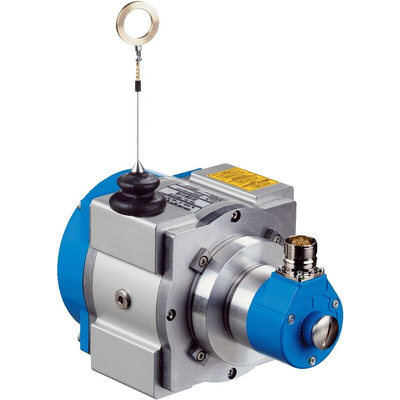

BTF13-A1AM0520, Sick Draw Wire Encoder, SSI Signal

Overview

With wire draw lengths from 2 to 50 m, the HighLine series of wire draw encoders have enormous range. Thanks to guide rollers, the HighLine series enables flexible measurement paths - even around obstacles. Their rugged housing and dirt-resistant brush assemblies allow the encoder to be used in the toughest of environments, including dust, shock and vibration, which ensure a long service lifetime.

At a glance

Measuring lengths: 2 m ... 50 m
Modular measuring system with a wide selection of interfaces/measuring lengths
Very rugged system (dirt scraper, integrated brushes)
High-quality winding mechanism and wire input
High enclosure rating
High shock and vibration resistance
Extremely high resolution possible
Expandable using external accessories

Your Benefits

Reliable solution for use in harsh ambient conditions
Long service life due to rugged industrial housing
Quick and easy installation without the need for precise linear guidance
Low integration and maintenance costs
Customization option reduces storage costs
Analog interface speeds up commissioning and cost-effective interface card can be used

Applications

positioning the height of the lifter
Height positioning in sheet metal storage
Height detection of the crane gripper
Positioning of the ULD cab
Recording the extending and retracting movement of a passenger boarding bridge
Pallet handling with narrow aisle forklifts at great heights
Length measurement on the boom of a reach stacker
Wire draw encoder for support and boom positioning on the mobile crane
Monitoring of the drill feed and drill speed
Aerial ladder positioning on aerial rescue trucks
Positioning of the gripper arm on garbage trucks

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - BTF13-A1AM0520
