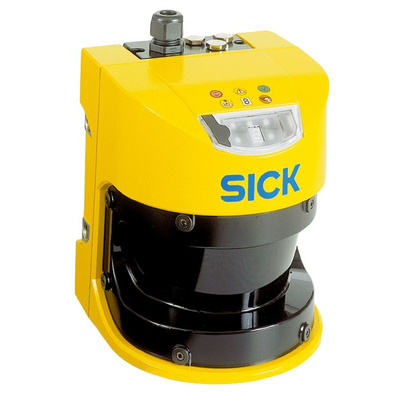

S30A-6011CA, Sick S30A Series Laser Scanner Scanner, 49m Max Range

Overview

The S3000 Advanced is used for efficient optimization of production processes. The S3000 Advanced variant can be configured with up to four field sets. By the proven triple field mode and the function of simultaneous monitoring of up to four protective fields- in combination with the SICK safety controller- mobile and stationary applications are more efficiently implemented. The static signals at the two available inputs enable flexible protective field switching. The S3000 Advanced is ideal for integration into complex processes, such as assembly lines in the automotive industry. This variant also has an integrated EFI interface for implementing networked systems. EFI can be used to connect up to four devices to safety controllers from SICK, which provides remote diagnostics, for example. The system plug with built-in configuration storage enables rapid device replacement without using a laptop.

At a glance

4 m, 5.5 m or 7 m protective field range
4 switchable field sets
Configuration memory integrated in the system plug
Interface (EFI) for reliable SICK device communication
Selectable resolution for hand, leg or body detection
Simultaneous monitoring of up to 4 protective fields
Contour as reference for vertical applications
Integrated external device monitoring (EDM)

Your Benefits

Large protective field range of 7 m enables a large variety of applications
Safety technology – with no loss of productivity
Quick recommissioning via configuration memory
Modular expansions, low wiring effort and additional functions such as the simultaneous monitoring of up to four protective fields using a SICK safety controller via EFI
Easy installation, commissioning and maintenance for stationary and mobile applications
Decades of proven safety technology guarantee maximum reliability and availability – even under difficult conditions
Simple alignment and reliable operation in vertical mode

Applications

Access protection on the press line
Mobile hazardous area protection
Dynamic hazardous area protection
Hazardous area protection with protective field switching
Vertical access protection
Access protection on a press line
Safe position monitoring of the tool changer

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - S30A-6011CA
