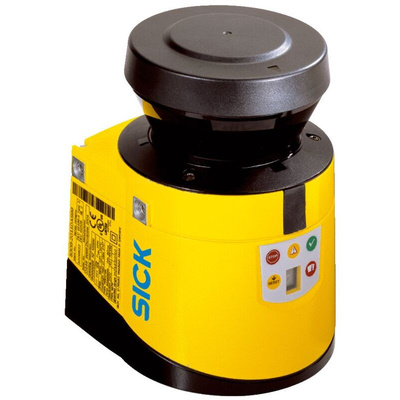

S30B-2011BA, Sick S30B Series Laser Scanner Scanner, 30m Max Range

Overview

The S300 Standard is the cost-effective solution for applications with freely definable protective fields. The new triple field mode allows three fields – one protective field and two warning fields – to be activated at the same time. The compact design means the safety laser scanners can easily be fit to any machine. The S300 Standard is ideally suited to horizontal and vertical protection of hazardous and entrance areas. The configuration memory integrated into the system plug also enables simple commissioning and quick device replacement. CDS (Configuration & Diagnostic Software) can be used to define protective and warning fields in a convenient and standardized way on a PC or laptop.

At a glance

Compact design
2 m or 3 m protective field range
270° scanning angle
1 field set
Configuration memory integrated in the system plug
EFI interface for safe SICK device communication
Measured data output via RS-422
Contour as reference for vertical applications

Your Benefits

Simple integration due to compact design
Easy installation, commissioning and maintenance for stationary and mobile applications
Unbeatable cost-effectiveness – 270° scanning angle allows complete application protection with only two scanners
Safety engineering – with no loss of productivity
Quick recommissioning via configuration memory
Easy modular expansions, simple cabling and additional functions using SICK safety controllers with EFI
Decades of proven safety technology guarantee maximum reliability and availability – even under difficult conditions
Simple alignment and safe operation in vertical mode

Applications

Hazardous area protection or presence detection at loading and unloading stations.
Hazardous area protection on assembly lines
Pressure-sensitive mat replacement
Protection of automatically guided vehicles
Protection of small automatically guided vehicles (automatically guided carts)
Access protection for machines and systems
Hazardous point protection of assembly stations

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
