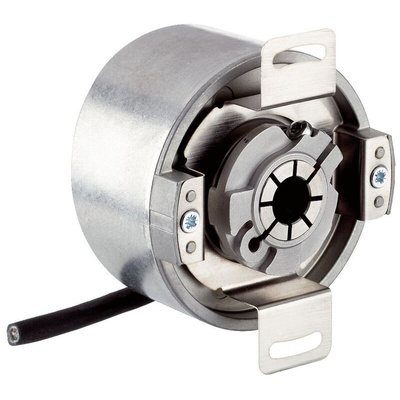

VFS60A-BHPK01024, Sick Incremental Encoder, 1024 ppr, TTL Signal, Hollow Type

Overview

Motor feedback systems from the VFS60 product family are ideally suited for use in industrial applications under rough conditions, especially for attaching to asynchronous motors. A large number of product variants meets almost all requirements: with through hollow shaft or blind hollow shaft of 8 mm to 15 mm diameter, with plug-in cable connection or pre-assembled male connector at the cable end. This means more mechanical flexibility. In addition, the robust shaft bearing increases the service life while at the same time reducing the servicing and maintenance requirements. The increased bearing distance guarantees a previously unattainable low level of vibration and optimum concentricity, even at maximum operating speed. The product families are allocated to different performance classes. From different defined line counts to a pre-programmed version. Moreover, all the common electrical interfaces are available. TTL, HTL or sine 0.5Vss.

At a glance

TTL, HTL or sine 0.5 Vpp interfaces
Resolution of up to 65,536 lines per revolution
Individual programming of the interface, line count and of the zero pulse
Direct programming via RS485
Excellent concentricity through large distance between the ball bearings
Extremely rugged
Protection class IP65
Mechanical flexibility through blind hollow shaft and through hollow shafts with diameters of 8 to 15 mm, available with various torque supports
Temperature range from –30 °C to +100 °C
Insulated shaft connection through plastic collar possible

Your Benefits

Programmable version for a reduced product variety
Various programming tools designed to take into account your own programming requirements
High performance and reliability even in rough ambient conditions
High vibration resistance and extended temperature range through nickel code disk
Large ball bearing distances reduce uneven wear and minimize vibration on the motor feedback housing, which increases the motor feedback system’s service life
The “insulated shaft connection” prevents electrical continuity through the bearings of the motor feedback system, thus extending the operating life of the system

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - VFS60A-BHPK01024
