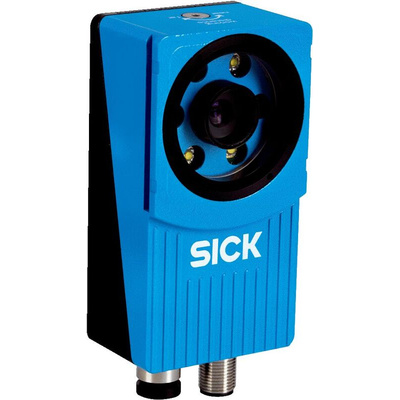

VSPM-6F2113, Sick CMOS, White Light, Monochrome Vision Sensor- 640 x 480

Overview

The Inspector is an intelligent vision solution in an easy-to-use sensor package. No matter if the task is to verify completeness and quality, find a part’s position or measure its dimensions, the Inspector is up to the challenge. The sensors’ rugged design and IP 67 metal housing makes them ideal for tough environments and intelligent processing technology makes the Inspector perfect for high-speed applications. The flexible housing is designed to easily optimize the optical needs of your application. This ensures excellent inspection even with tough targets, such as highly reflective metal parts and multi-coloured labels. The Inspector family provides broad support for control, monitoring and data collection through a variety of interfaces. This vision sensor provides everything to meet your integration needs and facilitate daily work.

At a glance

High-speed positioning, inspection and measuring
Powerful “object locator” tool, independent of position, rotation and scale
Unique, interchangeable housing design supporting dome and various optical accessories
Simple step-by-step configuration in PC including emulator
Easy-to-use operator interfaces
Flexible machine and HMI design interfaces

Your Benefits

The multi-functional vision toolbox offers smart camera-level performance but with sensor ease-of-use
Unique, interchangeable housing design provides the easiest way to improve image quality
The simple configuration in SOPAS, including emulator for offline configuration and testing, will reduce downtimes in production to a minimum
The easy-to-use operator interfaces are optimized to make it easier for the operator to oversee daily work more efficiently
Ethernet communication and web API gives excellent connectivity and freedom to customize user’s HMI

Applications

Storage space positioning for storage and retrieval systems
Weld cap tests
Checking the installation of the instrument panel
Positioning the dashboard
Inline quality testing in the position
Sensor-based robot guidance
Monitoring the adhesive layer
Stationary monitoring of adhesive beads in a joining process
Edge guiding after calendaring
Inspecting the surface of the calendared rubber
Detecting the end of the reel when unwinding material
Open splice detection
Error prevention through inline test
Monitoring the release agent
Position detection of products on conveyor belts
Check of codes on packaging
Quality control of preforms
Check of codes on packaging

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - VSPM-6F2113
