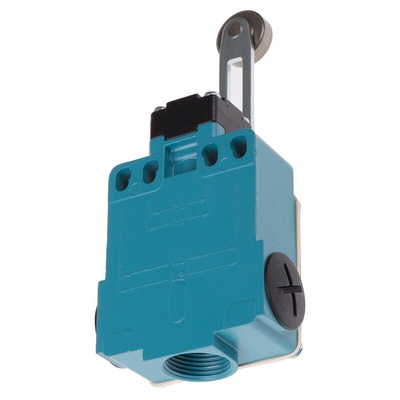

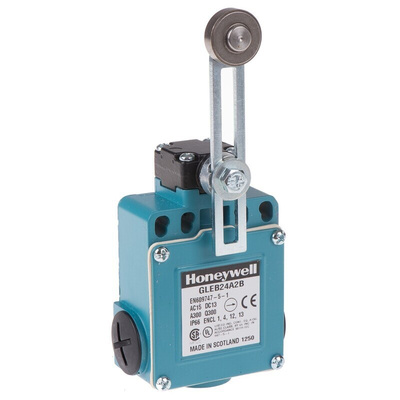

GLEB24A2B, Honeywell GLE Series Adjustable Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 300V ac Max, 6A

Honeywell Roller Lever Limit Switch, 2NO/2NC, 6A Maximum Current - GLE Series - GLEB24A2B

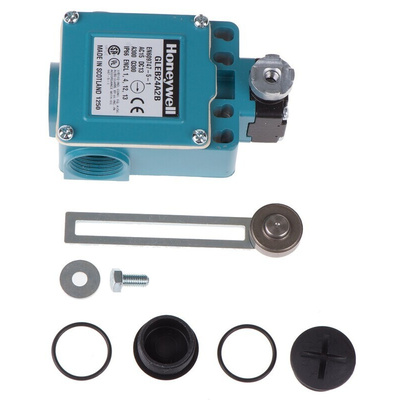

Turn your electrical connection on or off with this limit switch from Honeywell. Its three-component modular design makes it easy to take apart for maintenance and cleaning. These parts include a switch body that helps turn the electrical circuit off and on, a PG13.5 connection terminal for wiring it up to your power supply and an actuator that makes contact with the mechanism. The snap-action contacts ensure a fast switching response for enhanced reliability. Thanks to its wide operating temperature range of -40°C to +85°C, it's a good choice for use in harsh industrial environments.

Features & Benefits

• IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for up to 30 minutes
• Hardwearing die-cast zinc housing for resistance to impact and corrosion
• Roller lever is adjustable to suit your application

Applications

• Transportation hubs
• Valves
• Apertures and doors
• Textile machinery
• Packaging equipment

How long will this limit switch last?

This limit switch has an approximate mechanical lifespan of 15 million operations, so it will last a long time without the need for frequent replacement.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada
