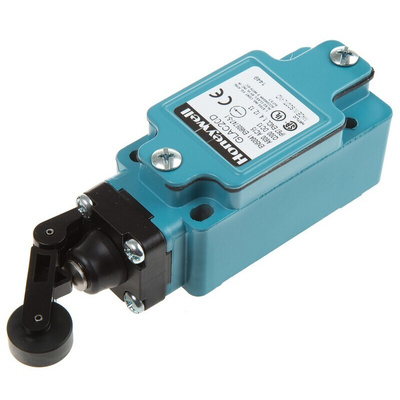

GLAC20D, Honeywell GLA Series Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 600V ac Max, 6A Max

Honeywell Roller Lever Limit Switch, 2NO/2NC, 6A - GLA Series - GLAC20D

Use this limit switch from Honeywell to turn an electrical connection on or off with fast, snap-action switching. The switch has an actuator head that makes contact with a conveyer mechanism, a switch body for turning the electrical circuit on or off and a terminal for installation within a circuit. It has a roller lever-style actuator that uses a cam to rotate the shaft and operate the contacts in the switch, making it simple to use.

Features & Benefits

• IP67 (ingress protection) rating for effective protection from dust and temporary submersion in water
• Die-cast electrostatic epoxy-coated zinc construction for resistance to rust and wear
• Modular design for ease of adjustment, installation and maintenance
• Supports a high maximum torque of 16N for an extra secure fit

Applications

• Textile machinery
• Packaging equipment
• Transportation hubs
• Valves
• Apertures and doors

Can this limit switch withstand extreme temperatures?

Yes. This limit switch has a broad operating temperature range of -40°C to +85°C, so it's suitable for use in harsh industrial environments.

How long will this limit switch last?

This limit switch has an approximate mechanical lifespan of 15 million operations for long-lasting use.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada
