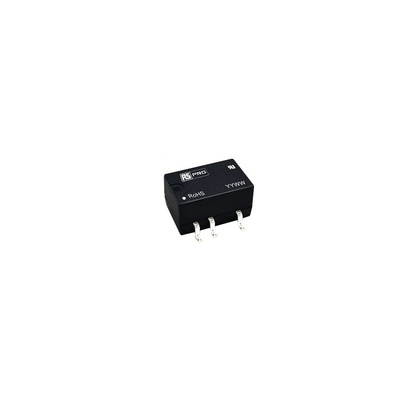

RS PRO DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Surface Mount, +105°C Max Temp -40°C

RS PRO 1W Isolated DC-DC Converter - PCB Mount

Looking for Isolated DC-DC converters, then consider RS PRO. We are proud to introduce a range of high-quality PCB mount dc-dc converters specially designed for applications where isolated voltages are required in a distributed power supply system.
These 1W isolated dc-dc converters are suitable for pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. Features include: continuous short circuit protection, no-load input current as low as 5mA, and fix input unregulated dual output.

Why would you choose these converters?

These 1W converter series have an input voltage of 12 Vdc or 24 Vdc, commonly used in applications where the voltage of the input is fixed, the isolation between input and output is 1500 Vdc and the regulation of the output voltage is not critical.

Features and Benefits

• DC converters


• 1W Isolated module


• Fix input unregulated single output


• Continuous short-circuit protection


• Industry-standard pin-out


• I/O isolation test voltage 1.5K VDC


• No-load input current as low as 8mA


• Operating temperature range: - 40℃ to +105℃


• High efficiency up to 81%


• RoHS Compliance

RS PRO 1W Isolated DC-DC Converter Variants - Input Voltage 12V

• Output Voltage 5 V dc, RS stock no: 223-3668


• Output Voltage 12 V dc, RS stock no: 223-3670


• Output Voltage 15 V, RS stock no: 223-3671


• Output Voltage 24 V dc, RS stock no: 223-3673

RS PRO 1W Isolated DC-DC Converter Variants - Input Voltage 24V

• Output Voltage 5 V dc, RS stock no: 223-3676


• Output Voltage 12 V, RS stock no: 223-3679

Applications

• Industrial control systems


• Digital circuits


• IGBT drive circuits


• Relay-driven and data switching circuits

Standards

IEC62368, UL62368, EN62368 Approved

RS PRO Datasheet
