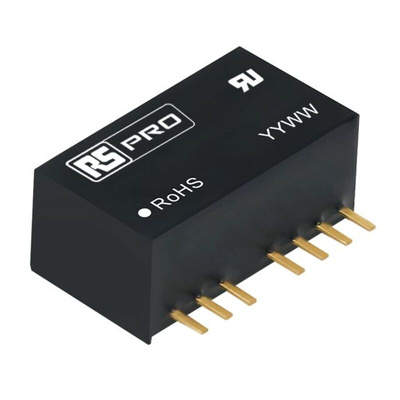

RS PRO DC-DC Converter, ±15V dc/ 100mA Output, 4.5 → 36 V dc Input, 3W, PCB Mount, +105°C Max Temp -40°C Min Temp

RS PRO 3W Isolated DC-DC Converter - PCB Mount

Looking for Isolated DC-DC converters, then consider RS PRO. We are proud to introduce a range of high-quality PCB mount dc-dc converters specially designed for applications where isolated voltages are required in a distributed power supply system.
These 3W PCB mount dc-dc converters feature an ultra-wide 8:1 input voltage range, efficiencies of up to 79%, 3000 VDC input to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output over-current, and short circuit protection.

Features and Benefits

• Ultra-wide input and regulated single/dual output


• Input 4.5….36Vdc


• Industry standard pin-out


• I/O isolation test voltage 3K VDC


• Operating temperature range - 40℃ to +105℃


• Input under-voltage, output short-circuit, over-current protection


• No-load power consumption as low as 0.12W

RS PRO 3W Isolated DC-DC Converter Variants

• Output Voltage 5 V dc, RS stock no: 223-3703


• Output Voltage 12 V dc, RS stock no: 223-3704


• Output Voltage 15 V, RS stock no: 223-3700


• Output Voltage ±12 V, RS stock no: 223-3701


• Output Voltage ±15 V dc, RS stock no: 223-3702

Applications

• Medical care


• Industrial control


• Electric power, instruments, and communication fields

Standards

EN62368 Approved

RS PRO Datasheet
