MAX22203EVKIT#, Maxim Integrated MAX22203 Evaluation Kit Half-Bridge Driver for MAX22203 Motor Driver for DC Motors or Single Stepper

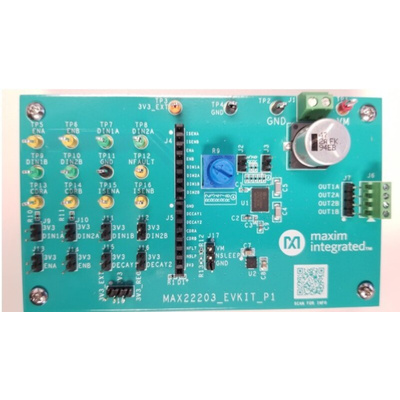

The Maxim Integrated e MAX22203 evaluation kit (EV kit) provides a proven design to evaluate the 65V, 3.8A dual H-bridge MAX22203 motor driver. The MAX22203 can drive two brushed DC motors or single stepper motor. The MAX22203 IC integrates very low impedance FETs in a dual H-Bridge configuration with a typical RON (high side + low side) of 0.3Ω. The EV kit features headers, test points, and terminal blocks to provide an interface to the MAX22203 motor driver. The MAX22203 integrated current-sense output ISENA and ISENB can be monitored using test points or can be connected to an external ADC using header J4.

Easy evaluation of the MAX22203
Adjustable tOFF time using an On-Board potentiometer
Configurable current drive regulation (CDR)
On-board 3.3V regulator to drive MAX22203 logic inputs
Test points and headers to interface with MAX22203
Logic inputs and current-sense outputs
Fully assembled and tested
Proven PCB layout
