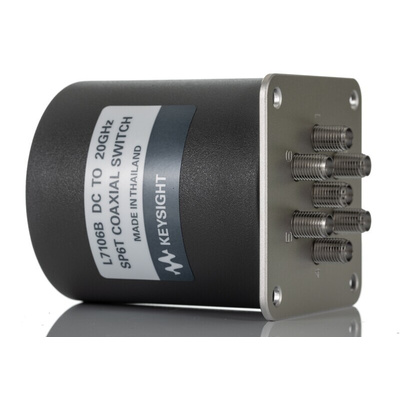

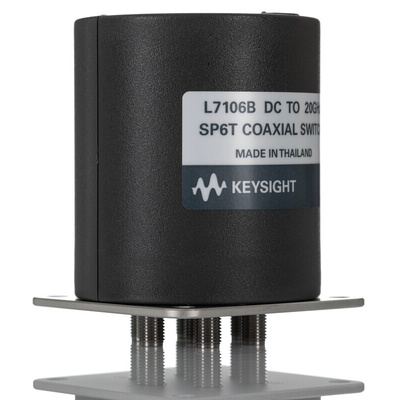

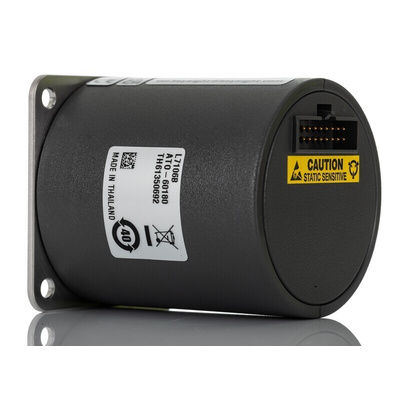

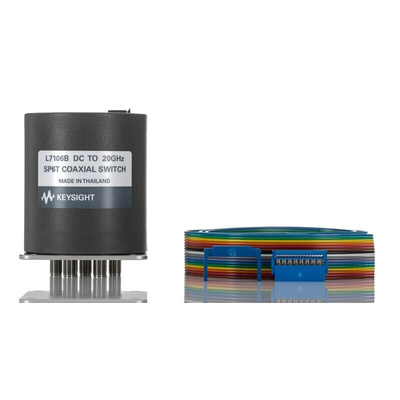

L7106B-161-024, Keysight Technologies RF Switch, SP6T, SMA Female Connector, 20GHz Max, 90dB Isolation, 15000000ns

Keysight Technologies RF Switch, 90dB Isolation, 15ms Switching Speed - L Series - L7106B-161-024

Want top-tier accuracy for your signal routing and testing applications? Turn to this RF switch from Keysight Technologies. Thanks to its low insertion loss of 0.6dB, it slashes the risk of electrical noise or random errors in repeated measurement paths. This reduces the need for frequent calibration cycles and helps you maintain system uptime to boost productivity. A high isolation of 90dB at 12GHz means you can trust that the switch de-energises quickly when turned off for increased safety.

Features & Benefits

• Indicator lets you know the switch position at a glance
• Long lifespan of two million cycles, so it's built to last
• Standard female SMA termination type for broad compatibility with standard connectors
• Rapid-fire switching speed of 15ms means you can expect swift changeovers

Applications

• Research and development labs
• Electrical testing
• Universities

What's the significance of this product's standing wave ratio?

This switch has a low standing wave ratio of 1.45. This indicates it's efficient at transmitting signals from the source to your load with minimal interference or reflected energy.
