0500P1-2-040K, Nuvotem Talema 230V ac, 2 x 40V ac Toroidal Transformer, 500VA 2 Output, Трансформатор

Encapsulated with Leads 230Vac Primary Transformers

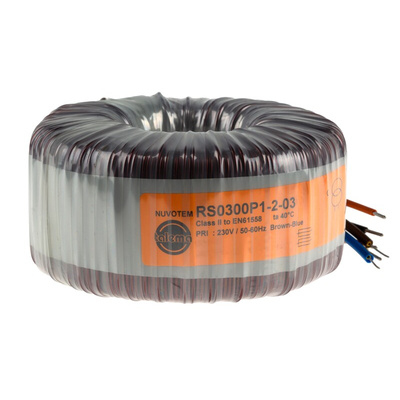

High quality encapsulated toroidal transformers with a single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.

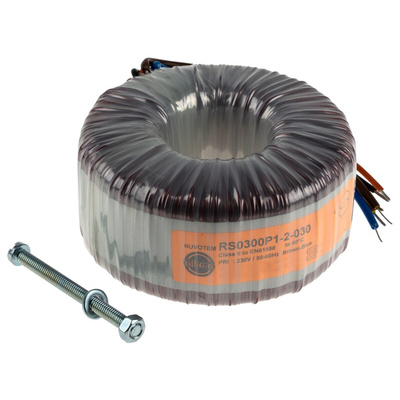

Fixing bolt not included
Fully encapsulated to UL94-V0
Case material meets UL94-V0, Nylon 6.6
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss

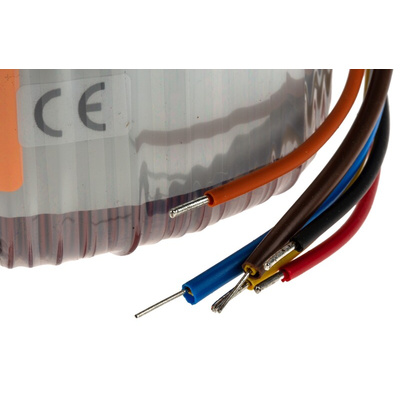

Double insulated primary leads
Low surface temperature
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE0551, VDE0550 and BS415

Standards

UL94-V0

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

VDE 0551; VDE 0550

Standards

EN61558; EN60950; EN60065; BS415

Toroidal Encapsulated 230Vac Primary 15VA to 500VA

Encapsulated-Style-230V-Primary-0500VA Datasheet
