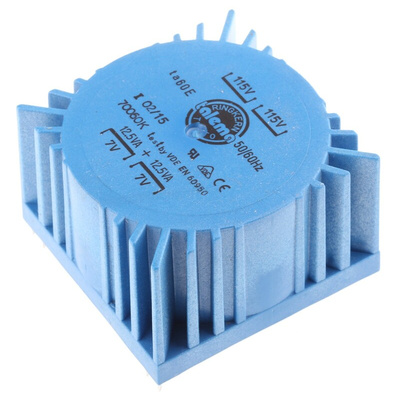

70060K, Nuvotem Talema 115 V ac, 230 V ac, 2 x 7V ac Toroidal Transformer, 25VA 2 Output, Трансформатор

Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers

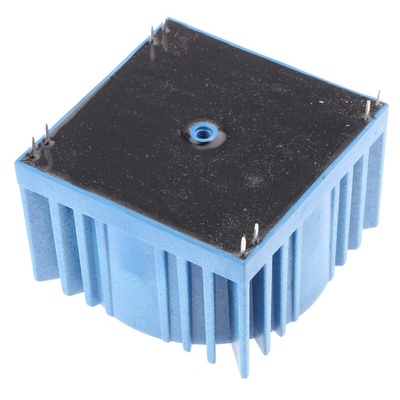

This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting

Low profile compact design
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested

Standards

EN60950, VDE0805, UL506, UL1950, UL6500

Approvals

UL recognised, VDE

Approvals

EN60950; VDE 0805 (VDE 5803UG); UL 506 (E215495); UL 1950 (E218027; UL 6500 (E218027)

Encapsulated – Toroidal

Note

Fixing screws not provided

70000K-72400K_Datasheet
