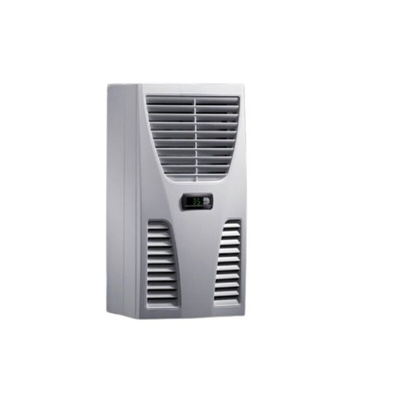

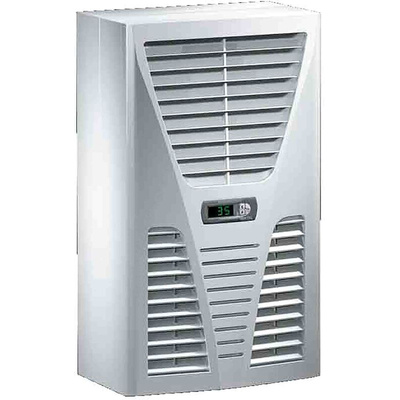

3361500, Rittal SK Series Enclosure Cooling Unit, 850W, 230V ac, 230 m³/h, 550 m³/h, 550 x 280 x 280mm

Rittal Enclosure Cooling Unit, 550m³/h External Air Flow, Wall Mounting - TopTherm Series - 3361500

Keep your enclosures ventilated with this enclosure cooling unit from Rittal. It has a powerful external circuit airflow of 550m³/h and an internal circuit airflow of 230m³/h, which helps to prevent your equipment from overheating. For versatility, you can set the temperature between +20°C and +55°C. The unit has a wall-mount design for easy and convenient installation.

• Internal circuit has an IP54 rating for resistance to limited amounts of dust and water splashes
• Comes fully wired for ease of installation
• Made of sheet steel for resistance to corrosion and impact

Applications

• Server rooms
• Office spaces
• Data centres

The Rittal SK series is the energy efficient wall mounted cooling units with integral e-comfort controller with RiNano coating on the condenser as standard. The total cooling output is 0.77 kW with 2.7 A rated current and the material used is the sheet steel.

What's the size of this cooling unit?

Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor

This cooling unit has compact dimensions of 550 (H) x 280 (W) x 280mm (D), so it will take up minimal space in your enclosure.

Datasheet-3361500

Instruction Sheet - 3361500
