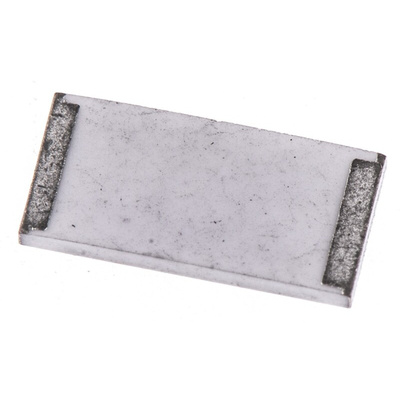

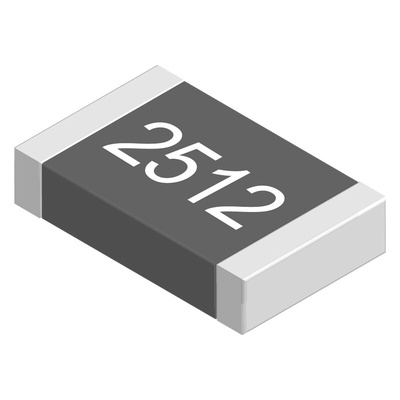

TE Connectivity 100Ω, 2512 (6432M) Thick Film SMD Resistor ±5% 1W - 3520100RJT, Резистор

2240272
Номер производителя: 3520100RJTПроизводитель: TE Connectivity
Цена за шт. (норма упаковки 10 шт)
135.00 руб. (С НДС) *
Количество 10+ 100+ 250+ 500+ 1000+
Цена 135.00 руб. 123.00 руб. 117.00 руб. 108.00 руб. 99.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity 3520 Series SMD Fixed Resistors

This range of SMD fixed resistors come from the TE Connectivity 3520 series. They are all house in a 3520 industry standard package size and are low profile high power resistors featuring a small size to power ratio. The 3520 devices range from 1 ohm to 10M and tolerances of 1% and 5%. They also include zero ohm links.
Type 3520 thick film resistors are powerful devices within a compact package. They are perfect for industrial applications and general purpose use. Example applications include; high frequency operation, owing to the short lead structure and low capacitance.

Features and Benefits
• This thick film series comes in a variety of resistance ranging from 1 Ω to 1 MΩ.
• Terminal finish: Matte Sn
• Moisture sensitivity level: Level 2
• Working to an operating temperature of -55°C to +125 °C
• Pack size: 3520

Construction
Precious metal terminations are printed on to a ceramic base and fired. The resistive element is then screen printed and the passivation layer added. The resistor is trimmed to tolerance by a laser. The Prescribed tile is broken into strips, the end plating is fired and the strips broken into individual components. Final termination is made by electroplating

FAQ’s
What is MSL? (Moisture Sensitivity Level)
Moisture sensitivity level relates to the handling and packaging precautions on semiconductors and passive components.
Moisture sensitivity level: Level 2 (1 year <+30/60%)

Handling Recommendations
When flow soldering - the land width must be smaller than the Chip Resistor width to properly control the solder application. Generally, the land width can be Chip Resistor width (W) x 0.7 to 0.8. When reflow soldering – solder application amount can be adjusted. Thus the land width can be set to W x 1.0 to 1.3.

Техническая спецификация
pdfTechnical Drawing
pdfTE Connectivity 3520 Series Power Resistors Datasheet
Мощность номинальная:
1Вт
Отклонение:
±5%
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C
Серия:
3520
Сопротивление:
100Ом
Температурный коэффициент:
±200ppm/°C
Технология:
Толстая пленка
Упаковка/корпус:
2512 (6432M)
