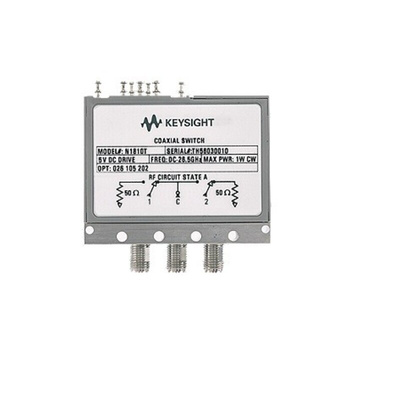

N1810TL-020-124-201, Keysight Technologies RF Switch, SPDT, SMA Female Connector, 26.5GHz Max, >90.0dB Isolation, 15000000ns, 50Ω Output

Keysight Technologies RF Switch, 24V DC Coil Voltage Rating, 15ms Switching Time - N1810/1/2 Series - N1810TL-020-124-201

Tackle many circuit testing processes in a snap with this RF switch from Keysight Technologies. It lets you quickly and efficiently transmit high-frequency signals through your system. A long service life of two million switching cycles means you can count on it for the long haul. Thanks to a switching time of just 15ms, you get rapid-fire signal transmission. As this product supports a broad frequency range of DC to 26.5GHz, it's a flexible choice for many standard test systems.

• Port-to-port isolation of over 90dB to minimise the risk of EMI
• Coil voltage of 24V DC for use in low-power systems
• Compact dimensions of 52.2 (L) x 53.41 (W) x 12.7mm (D) to fit into tight spaces
• SPDT configuration lets you control up to two devices for versatility

Applications

• Laboratory testing
• Signal routing
• Telecommunications

The Keysight Technologies N1810TL is a single-pole double-throw switch available in the frequency range from DC to 26.5 GHz. The unused port is terminated 50 Ω, making it ideal for applications where port matching is required.

How do I connect this RF switch to my test system?

D subminiature 9 pin connectors or solder lug terminals
Standard or TTL or 5 V CMOS compatible drive
Optional position indicator

This unit comes pre-terminated with a standard nine-pin D-sub connector, so it plugs into standard equipment without the hassle of wiring.

Datasheet - N1810TL-020-124-201

Catalogue - RF and Microwave Test Accessories
