DAQ6510/7700, Keithley Bundle: DAQ6510 & 7700 Data Acquisition

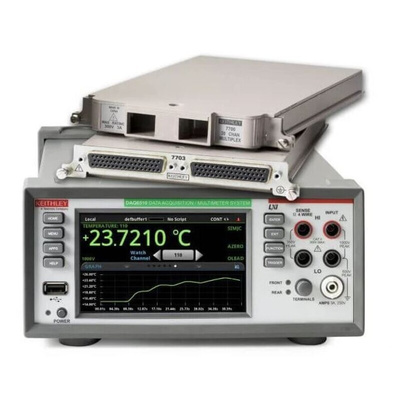

Keithley Bundle: DAQ6510 Data Acquisition and Logging Multimeter System + 7700 (20 channel) plug-in card, True RMS, 3A ac Max, 3A dc Max, 750V ac Max

The DAQ6510 is a precision data acquisition and logging system that creates a new level of simplicity compared with he often complicated configuration and control found in many stand alone solutions. A large 5-inch (12.7 cm) multi-touch display will guide users through set-up, data visualization, and analysis, removing the necessity of a PC and custom software for many applications. If you prefer or require a PC, a complement of IVI and Labview drivers and the Keithley KickStart Instrument Control Software are available to help with any application. Using Keithley’s newest 6-digit multimeter technology, you will find even greater accuracy, functionality, and speed. Two-year accuracy specifications are included, so you can be assured your critical measurements remain accurate and fully traceable. With 12 plug-in switching and control modules available and two module slots, you can build a test system that can measure or control up to 80 devices-under-test (DUTs) in a multiplexing configuration. With two 6'8 matrix modules, a octal of 96 crosspoints, the DAQ6510 can test one or multiple Cs. For high volume production testing, select a solid state multiplexer module to maximize throughput with 800 channels/s scanning speed and minimize downtime compare with fixed life, electro-mechanical relays. A number of module have cold junction compensation, temperature references or thermocouple temperature monitoring of devices during environmental testing, and HALT and HASS accelerated life esting. Even switch signals from wireless devices with RF modules having a maximum switching frequency of 3.5 Ghz.

Features and Benefits

• Three-year warranty
• 12 different switch, RF, and control modules to connect to as many as 80 DUTs in one test setup
• Large, 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display
• 2-year specified, full featured, traceable 6-digit multimeter with 0.0025% DCV (1 V, 10 V ranges) basic accuracy
• Standard LAN/LXI and USB-TMC communication interfaces
• Optional interfaces include GPIB, RS-232, and TSP-Link® Technology
• Up to 80 2-pole channels of thermocouple, RTD, or thermistor temperature measurements
• Scanning speeds as high as 800 channels/second with the solid state relay module
• Front panel jacks for stand-alone DMM operation
• Brand New full feature KickStart instrument control software with a data acquisition and logging application

Accessories

DAQ Accessories
Plug In Modules / Cards:
RS Stock No. 7600317 7700 (20 channel multiplexer)
RS Stock No. 7600326 7702 (40 channel multiplexer)
RS Stock No. 7962646 7703 (32 channel Hi Speed Differential multiplexer)
RS Stock No. 7962649 7705 (40 channel control module)
RS Stock No. 7962643 7706 (all in one I/O module)
RS Stock No. 7962652 7707 (multiplexer digital I/O module)
RS Stock No. 7962655 7708 (40 channel diff multiplexer module)
RS Stock No. 7962659 7709 (6 x 8 matrix module)
RS Stock No. 7962668 7710 (20 channel 60V Solid State Multiplexer Card)
RS Stock No. 7962661 7711 (2GHZ, DUAL 1X4, 50 OHM Multiplexer Card)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories

RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)
RS Stock No. 8470993 KUSB-488B (Male GPIB to Female GPIB Parallel Cable)

For full list of accessories, application and software options, please see datasheet

Software Updates

Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting
