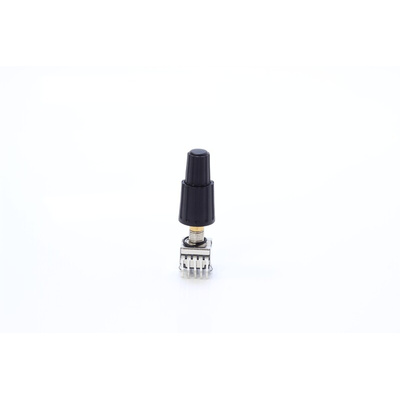

E37-VT6332-2-SET, Elma Mechanical Rotary Encoder

E37 Dual encoder with knobs

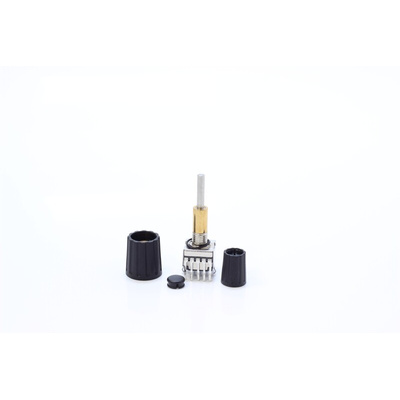

The E37 Dual Encoder from Elma Electronic is a high-performance mechanical dual incremental encoder. Designed with Elma’s exclusive Swiss Click Indexing System ensuring that the rotational torque remains consistent over the entire lifetime of the encoder which is an impressive 300,000 revolutions. The E37-VT6332-2-SET has a resolution of 16 detent positions on both the inner and outer shafts and includes a pushbutton function that is activated with a 6N push force. This variation also includes vertical mounting and is environmentally sealed to IP68 on both the shaft and front panel making it ideal for use in harsher environments. This set also comes with the cap, inner and outer knobs included making it ideal for low quantity productions or prototyping.

Features and benefits

• Two encoders – one component


• Rotational life 300,000 revolutions


• Operating temperature -40 to +85 °C


• Integrated push button


• IP 68 front panel sealing


• Product knobs included

Applications

• Aviation Cockpits


• Radio and Navigation Equipment


• Professional Audio Equipment


• Portable Communication Equipment

E37-VT6332-2-SET Datasheet
