81037005, Crouzet Spur Gearbox, 500:1 Gear Ratio, 5 Nm Maximum Torque, Редуктор

32 & 42mm Diameter Motors & Gearboxes

Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life
32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. 320-613)

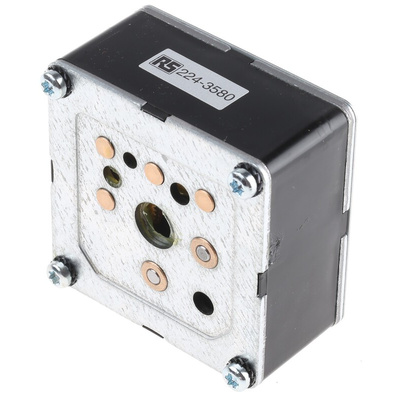

Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirements

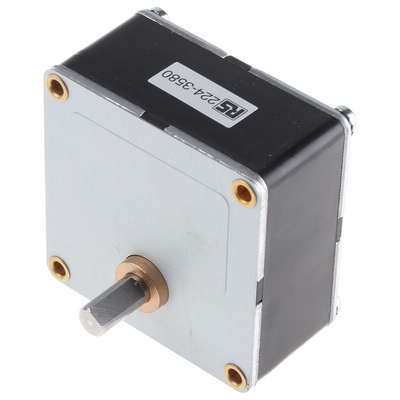

Gearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm

Note

For applications where stall conditions may occur, it is recommended that a current limiter is fitted to this combination.

dc motors size 32 & 42mm diameter & gearboxes
