8511000166, Mascot 6W Plug-In AC/DC Adapter 9V dc Output, 666mA Output

3-Pin 13A, Unregulated & Regulated

Plugs directly into a standard 3 pin 13A mains socket
230V ac ±10% 50//60 Hz input
Regulated or unregulated output options
Regulated models have a continuously adjustable output voltage
Model 8713 (stk no. 224-3849) is medically approved to EN60601
Model 8717 (stk no. 363-5104) features a 'switch mode' secondary

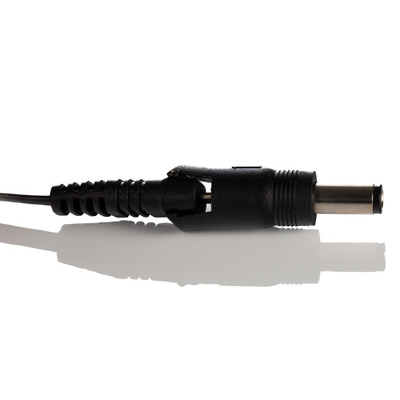

1.7m (approx.) lead fitted with a 2.1mm power plug (centre + outside common)
Operating temperature -20 to +35°C

Note

For Industrial Use Only, not in scope of Regulation 2009/125

Unregulated adaptors will supply higher output voltages than specified when used at less than maximum load.

Note

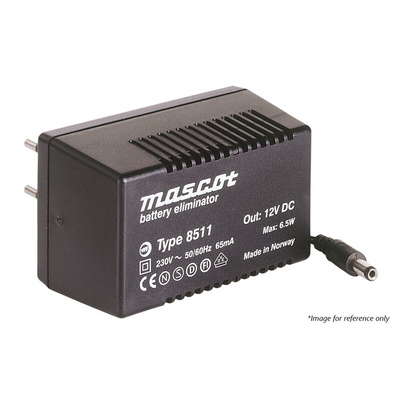

Image is for illustrative purposes only, please refer to technical specification
