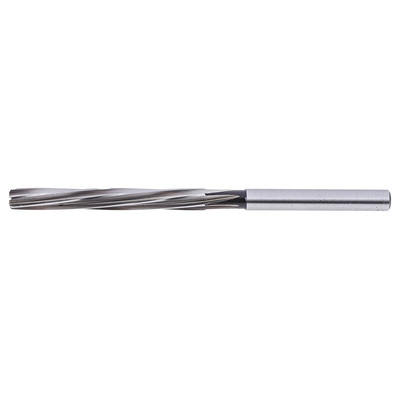

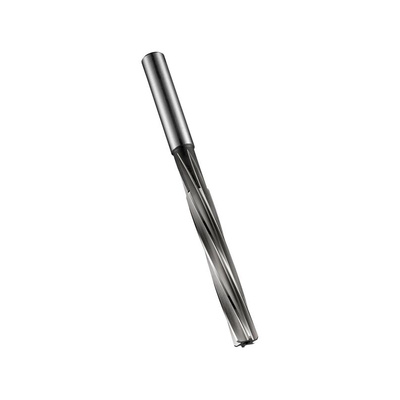

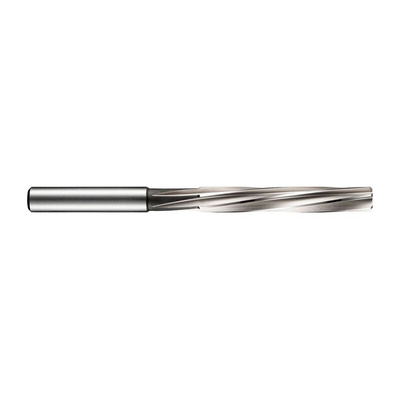

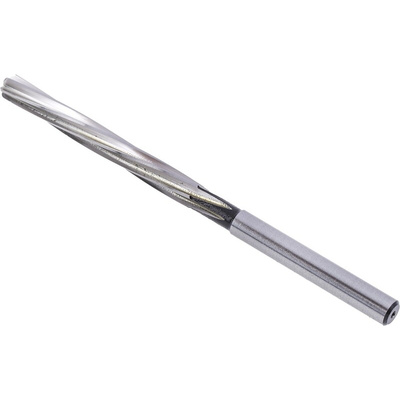

B901 5.0MM, Dormer Straight Shank Reamer Bit, 5mm Diameter, Spiral Flute, 87 mm Overall, Машинная развертка

HSS Straight Shank Machine Reamer (B901)

HSS Spiral Flute straight shank machine reamer for opening and finishing existing holes to H7 tolerance
Suitable for most ferrous and non-ferrous materials
6° helix, Left Hand Spiral for excellent surface finish
Manufactured to BS328 standard

Dormer Reamer Bit, HSS Material, 44mm Flute Length - B901 Series - B901 5.0MM

To strip rough edges from your workpiece's holes, go for this Dormer reamer bit. The tool's six spiral flutes quickly even out drilled sides, ensuring delicate parts easily slide into place. Thanks to its heat-resistant HSS construction, the component shrugs off wear from intense cutting. Support for steel, cast iron and non-ferrous metals means you don't need to switch tools for different jobs. As it handles feed rates up to 59m/min, the bit speeds through long metalworking tasks.

Features & Benefits

• Flute length of 44mm to create deep drill holes
• Straight shank for easy fitting to power tools
• Steam oxide-treated to prevent loading on cutting edges

Applications

• Aerospace engineering
• Stock removal
• Engine assembly

How does reaming affect my drill hole?

Reaming increases the size of a drill hole. To balance this out, you should drill a starting hole that's slightly smaller than you need.

Standards

ISO/BS328/DIN206B

B901 Reamer Specification Data Sheet

Catalogue - Holemaking
