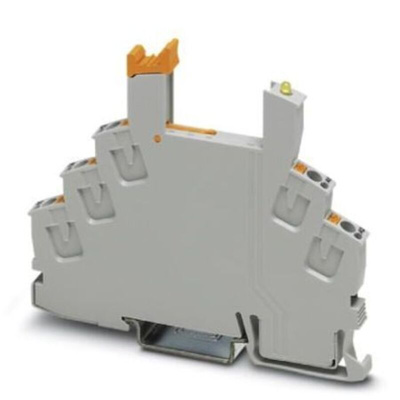

2900958, Phoenix Contact RIF-0-BPT/21 1 Pin 12 → 24V dc DIN Rail Relay Base

Phoenix Contact Relay Base, 1 Changeover Contact, Push-In Connection - RIF-0-BPT/21 - 2900958

Looking to boost your electromechanical switch with a new power relay? This relay base module from Phoenix Contact gives you solid ground to mount a single relay (801-8021) onto a DIN rail and then link it to your system. You'll find plugging in compatible components such as a solid state relay (306-6592)is a cinch with this socket, thanks to its push-in connection that takes the guesswork out of installation.
A wide input range between 12 and 24V DC means you can power it from common sources. To protect your attached relay, this product also features a damping diode to suppress power spikes for peace-of-mind operation. As it simply clips onto a DIN rail, you and it can get to work immediately.

• Broad operating temperature range between -40°C and +85°C for use in extreme conditions
• Small 6.2 (W) x 93 (H) x 78mm (D) dimensions fit compactly in your setup
• Flammability rating of V2, indicating that vertical fires put themselves out in less than 60 seconds to protect users and equipment
• Accepts wire sizes between 24 and 16AWG, making it compatible with most systems

The Phoenix Contact relay base for miniature power relay with 1 PDT or solid-state relays of the same design for mounting on DIN rail.

Ambient temperature -40 to 85 °C
Input voltage range 12-24 V DC
