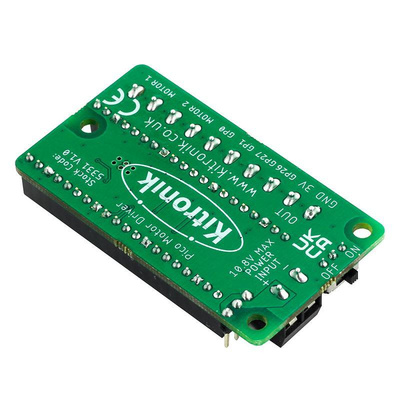

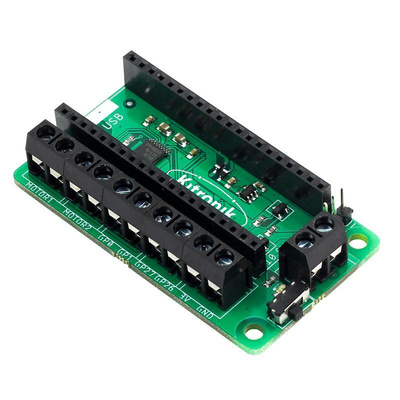

5331, Kitronik Kitronik Motor Driver Board for Raspberry Pi Pico

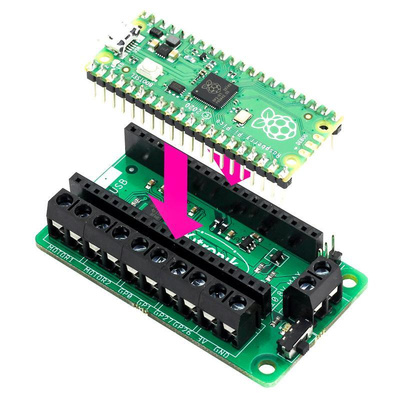

The Kitronik Discovery Kit for Raspberry Pi Pico (connected via pin header) to drive two motors simultaneously with full forward, reverse & stop control, making it ideal for Pico controlled buggy projects. Alternatively, the board can be used to power a stepper motor. The board features the DRV8833 motor driver IC, which has built-in short circuit, over current and thermal protection. The board has 4 external connections to GPIO pins and a 3V and GND supply from the Pico. This allows for additional IO options for your buggy builds that can be read or controlled by the Pico. In addition there is an on/off switch and power status LED, allowing you to see at a glance if the board is powered up and save your batteries when your project is not in use.

A compact yet feature-packed board designed to sit at the heart of your Raspberry Pi Pico robot buggy projects
The board can drive 2 motors simultaneously with full forward, reverse, and stop control
It features the DRV8833 motor driver IC, which has built-in short circuit, over current and thermal protection
Additionally, the board features an on/off switch and power status LED
Power the board via a terminal block style connector
The 3V and GND pins are also broken out, allowing external devices to be powered

Datasheet - 5331
