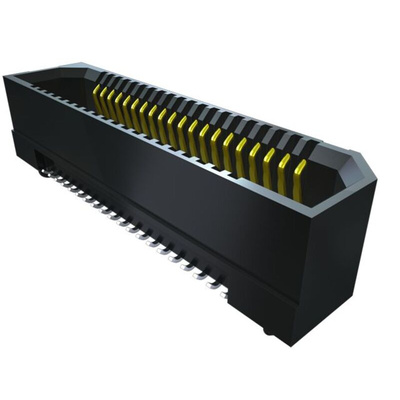

ERF8-005-05.0-S-DV-L-TR, Samtec ERF8 Series Vertical Surface Mount PCB Socket, 10-Contact, 2-Row, 1.27mm Pitch, Solder Termination

The Samtec ERF8-S is 0.80 mm edge rate rugged high speed socket and a shielded board-mount socket designed for use in high-speed systems. The ERF8-S uses the edge rate and 10 number of position contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance. The ERF8-S mates with ERM8-S board-mounted headers.

360º metal shielding for reduced EMI
Available with extended guide post
56 Gbps PAM4 performance
Rugged Edge Rate contacts optimized for signal integrity performance
1.5 mm contact wipe
Positions: 20 - 60
Stack Height: 7, 9, 12 and 16 mm

Datasheet - ERF8-005-05.0-S-DV-L-TR
