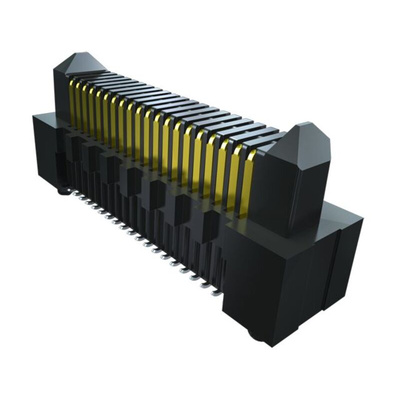

ERM8-013-05.0-L-DV-L-K-TR, Samtec ERM8 Series Vertical PCB Header, 26 Contact(s), 0.8mm Pitch, 2 Row(s), Shrouded

The Samtec ERM8-EM is an edge-mounted PCB header designed for use in high-speed systems and 26 number of position. The Samtec ERM8-EM uses The Samtec edge rate contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance. The Samtec ERM8-EM mates with ERF8 board-mounted sockets.

Rugged Edge Rate contact
Smooth broad milled contact surface for increased wear life
28 Gbps performance
Positions: Up to 150
Latching, extended guide post with shield and differential pair options
Dual sourced By Hirose

Datasheet - ERM8-013-05.0-L-DV-L-K-TR
