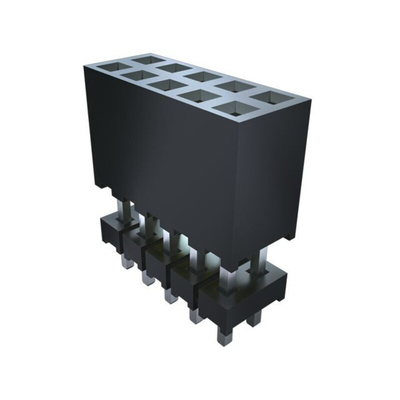

ESQT-130-03-S-Q-368, Samtec ESQT Series Straight Through Hole Mount PCB Socket, 120-Contact, 4-Row, 2mm Pitch, Solder Termination

The Samtec ESQ is an elevated through-hole socket strip designed for higher profile board spacing and 60 number of position. ESQ, the original PC/104 connector, uses the high retention, cost-effective tiger buy contact to provide reliable connections, and is available in single, double and triple row options. Flexible stacking .025" (0.635 mm) square post sockets with contact and design flexibility.

Pitch 0.100 inch (2.54 mm)
Contact System-Tiger Buy
Orientation- Vertical
Termination- Through-hole
Application- Single, double and triple row up to 108 pins
Special Features-Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications

Datasheet - ESQT-130-03-S-Q-368
