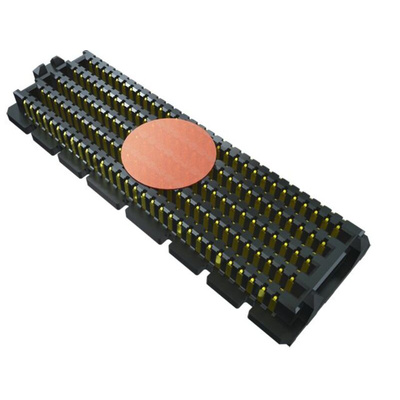

SEAM-20-03.5-S-06-2-A-K-TR, Samtec SEAM Series Straight PCB Header, 120 Contact(s), 1.27mm Pitch, 6 Row(s), Shrouded

The Samtec SEARAY SEAM series is an open-pin-field array PCB header which has 1.27 mm pitch. It maximizes design and routing flexibility for single-ended or differential pair configurations, and for power, signal, or ground. It uses the edge rate contact system which is designed for applications requiring high-mating cycles and 56 Gbps PAM4 performance.

Lower insertion/withdrawal forces
Solder charge termination
Maximum grounding & routing flexibility
Stack heights from 7 mm to 18.5 mm

Datasheet - SEAM-20-03.5-S-06-2-A-K-TR
