STEVAL-ETH001V1, STMicroelectronics Servo Drive Solution For Multi-Axial Position Control with Ethernet Real-Time Motor Control for

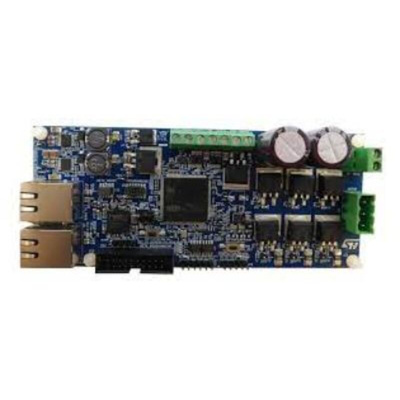

The STMicroelectronics STEVAL-ETH001V1 servo drive evaluation board has been developed to address three-phase PMSM applications oriented to multi-axial position control and connectivity. The evaluation board embeds a motor control power stage, a digital actuation section and a power management section. The motor control power stage hosts the STDRIVE101 half-bridge gate driver and six STH270N8F7-2 power MOSFETs, featuring real-time connectivity with EtherCAT communication protocol supported by the NETX90 network controller, whereas the digital actuation section hosts an industrial IO management section with CLT03-2Q3 (input) and IPS160H (output).

Real-time communication via EtherCAT protocol
Three-phase motor drive inverter based on STDRIVE101 gate driver and
STH270N8F7-2 power MOSFET
STM32F767ZI microcontroller Arm®32-bit Cortex®-M7
NETX90 network controller
Main supply voltage up to 48 V with a max. overvoltage robustness of 60 V
Max. power dissipation up to 700 W

Datasheet - STEVAL-ETH001V1
