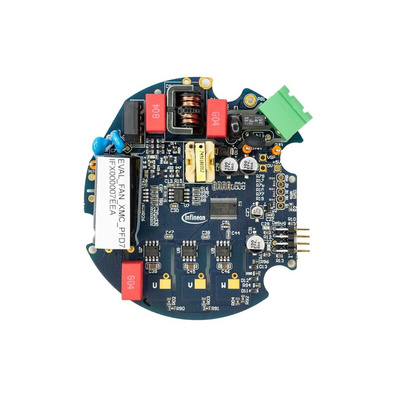

Motor drive evaluation board using PFD7 super junction MOSFET

The EVAL_FAN_XMC_PFD7 motor drive board does not only offer a sensorless synchronous rectification BLDC/PMSM control algorithm to reduce reverse-current hard-commutation stress but also gives the user the option to change switching frequency up to 20kHz and to choose between two-phase or three-phase modulation, which helps reduce switching losses.

Infineon's latest CoolMOS™ PFD7 super junction MOSFET series offers low on-resistance, as well as increased design flexibility while maintaining the industry’s fastest reverse recovery time (trr) optimized for HA motor drives. This enhances efficiency in hard-switching circuits, allowing BOM reduction and heatsink-free operation.

This board can be easily interfaced through XMC™ Link. XMC™ Link is an isolated debug probe for all XMC™ microcontrollers. The debug probe is based on SEGGER J-Link debug firmware, which enables use with DAVE™.

Important note: The XMC™ Link does not come with this evaluation board, and must be ordered separately.

Summary of Features

• Sensorless field orientated control (FOC)


• Best-in-class high voltage MOSFETs for hard commutation topology [B6 inverter]


• Low bill-of-material cost contributed by CoolMOS™ PFD7 and XMC™ algorithm


• Quasi-resonant CoolSET™ offers lower EMI and higher efficiency


• Graphical user interface (GUI) allowing ease-of-use


• Input voltage 90∼265 VAC

Benefits

• High efficiency


• Cost-effective


• Simplified design


• Near to productive solution

List of components

• 600V CoolMOSTM PFD7 SJ power device (IPN60R2K0PFD7S)


• 600 V half-bridge gate driver IC with integrated bootstrap diode (2ED28073J06F)


• 32-bit Microcontrollers with ARM® Cortex®-M0 (XMC1302-T038X0200 AB)


• Infineon 5th generation quasi-resonant CoolSET™ (ICE5QR4770AG)

EVAL_FAN_XMC_PFD7 Parametrics
Board Type: Evaluation Board
Dimensions: 87mmx87mmx25mm
Family: CoolMOS™ PFD7
Frequency min max: 6 kHz 20 kHz
Input Type: AC ; DC
Pout: 100 W
Product Description: The EVAL_FAN_XMC_PFD7 motor drive board does not only offer a sensorless synchronous rectification BLDC/PMSM control algorithm to reduce reverse-current hard-commutation stress but also gives the user the option to change switching frequency up to 20kHz and to choose between two-phase or three-phase modulation, which helps reduce switching losses.
Product Name: EVAL_FAN_XMC_PFD7
Qualification: Standard
Supply Voltage min max: 85 V 265 V
Target Application: Home Appliances ; Household ; IoT ; Pumps ; Refrigerator ; Washing Machines ; Motor Control & Drives
Topology: 3-Phase - 2 Level
