PEXUSB312A3, StarTech.com 2 Port USB A USB 3.2 USB 3.2 Card

StarTech.com USB Card, 2 Ports, USB 3.2 Bus Type - PEXUSB312A3

Do you need to add more USB ports to your PC? With this USB port by StarTech.com, you can connect multiple devices to your computer, such as a keyboard, mouse or printer. This is especially useful in older computers with fewer built-in ports.

High power outputWith 4.5W output per port, the unit supports high-power applications like NVMe drives and SSDs.
Fast speedUSB 3.2 bus type for a 10Gbps maximum speed for efficient transfer.

• Two USB ports so you can upgrade your current system simply
• Supports multiple INs to reduce bandwidth loss when using mixed-speed devices
• UASP feature for up to 70% faster read speeds and 40% faster write speeds than non-UASP cards

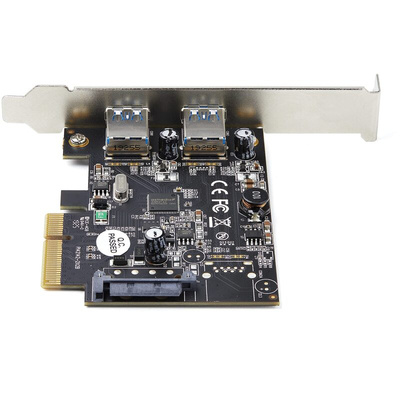

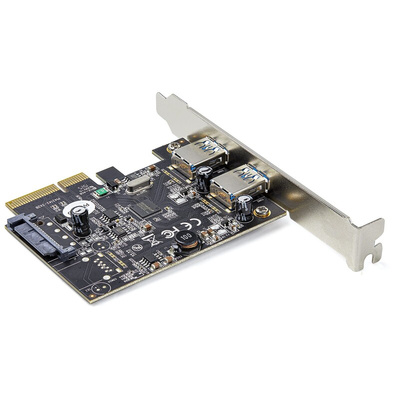

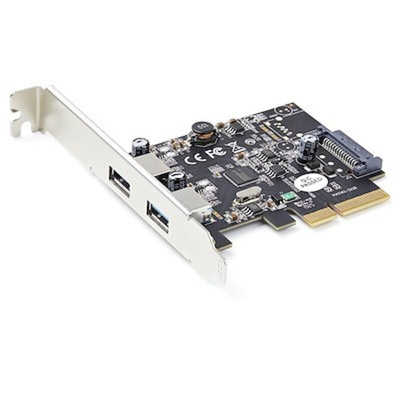

The StarTech.com PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in computer and enables you to upgrade your current system by adding two super speed USB-A (10Gbps) ports. The controller card enables to connect two USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

FAQs

Interface PCI express x4
Bus type USB 3.2 Gen 2 10Gbps
Card type standard profile (LP bracket incl.)
Port style integrated on card

How do I install this USB card?This card has full-profile and low-profile installation brackets for wide compatibility with commonly used equipment.

Datasheet - PEXUSB312A3

Manual - 2-Port USB 3.1 Card | 10Gbps Per port | 2x USB-A | PCIe
