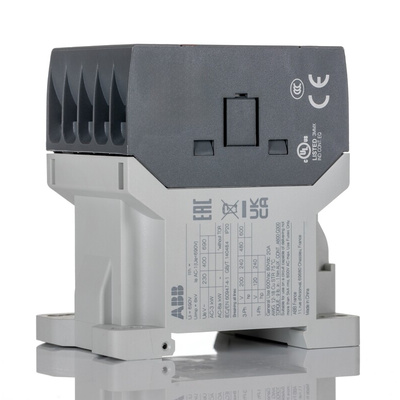

1SBL101001R2010 AS09-30-10-20, ABB A Line Series Contactor, 24 V Coil, 3-Pole, 22 A, 2.2 kW, 3NO

ABB Contactor, DIN Rail Mounting, 1NO Auxiliary Contact Configuration - A Line Series - 1SBL101001R2010 AS09-30-10-20

Take charge of your motor-driven equipment's power supply with this contactor from ABB. It switches motors rated up to 2.2kW, so it's a versatile unit. Thanks to operating times between 5 and 24ms, you can be sure it reacts in a snap to give you responsive appliance control. Mounting the unit is done without special tools, thanks to its compatibility with clip-on rail installation. Dimensions of just 45 (W) x 72.5 (H) x 68mm (D) mean it easily fits into smaller cabinets.

Features & Benefits

• Screw mounts to any solid surface via pre-drilled holes
• 3 poles to carry single-phase and 3-phase voltages and ensure wide electrical supply compatibility
• Screw terminals achieve a reliable and vibration-resistant connection
• Completes up to 1,200 electrical operations an hour to handle intense control processes
• Performs reliably in a wide operating temperature range between -40°C and +70°C

Applications

• Server management
• Lighting systems
• Domestic and commercial properties

How do I use this device's auxiliary contact?

You can link this contactor's auxiliary contact to a controller to notify your system when it changes position. This automatically signals other appliances to switch, ensuring hassle-free process automation.

Datasheet - 1SBL101001R2010

Instruction Sheet - BDT4 Series

Catalogue - Manual Motor Starters, Contactors and Overload Relays
