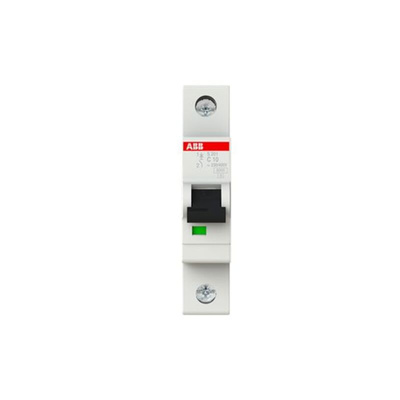

2CDS251001R0104 S201 C 10A - 10 KA, ABB System Pro M Compact S200 MCB, 1P, 10A Curve C, 230V AC, 72V DC

ABB 1-Pole MCB, 230V AC Voltage Rating, 15kA Breaking Capacity - S200 Series - 2CDS251001R0104 S201 C 10A - 10 KA

Protect powerful electrical installations with this MCB from ABB. It has a current rating of 10A and a maximum operational voltage of 400V AC, so you can rely on it for use in industrial and marine applications. Electromagnetic and delayed thermal tripping mechanisms safeguard against overloads and short circuits. A trip characteristic of C means it breaks the circuit quickly when it detects currents in the range of 5 to 10 times the rated load. Use this breaker with pumps and motors where current surges are problematic.

Features & Benefits

• Twin terminals and a choice of supplying feeds from the top or bottom increases connection flexibility
• Bi-directional cylinder lift terminals make for simple connections
• Red and green on/off indicator colours clearly display when it's operational
• IP20 rating means cable entry points are finger-proof
• Lightweight at 125g for easy handling and low strain on your appliances

Applications

• Industrial networks
• Aerospace and defence
• Marine industry

What wire sizes does this MCB accept?

This MCB accepts stranded, flexible and rigid wires sized between 0.75mm² and 35mm².

Datasheet - 2CDS251001R0104

Catalogue - Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
