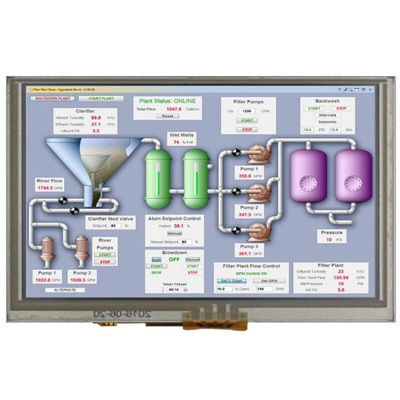

Midas MDT0500D2SSR-HDMI TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels

Summary

TFT 5.0” is a TN transmissive type color active matrix TFT liquid crystal display that
use amorphous silicon TFT as switching devices. This module is a composed of a
TFT_LCD module, It is usually designed for industrial application and this module
follows RoHs.

General Specifications

Size: 5.0 inch
Dot Matrix: 800 x 3(RGB) x 480 dots
Module dimension: 120.7 x 75.8 x 23.0 (Max) mm
Active area: 108.0 x 64.8 mm
Dot pitch: 0.045 x 0.135 mm
LCD type: TFT, Normally White, Transmissive
View Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
Aspect Ratio: 16:9
Backlight Type: LED, Normally White
Controller IC: TFP401 or equivalent
TFT Interface: HDMI
RTP Interface: USB
With /Without TP: With RTP(USB)
Surface: Anti-Glare

The Midas 5.0 inch TFT display has a resolution of 800 x 480 and a Landscape orientation. This display has a brightness of 350 cd/m² and an RGB appearance.

Operating temperature-20°C to +70°C

Datasheet - MDT0500D2SSR-HDMI
