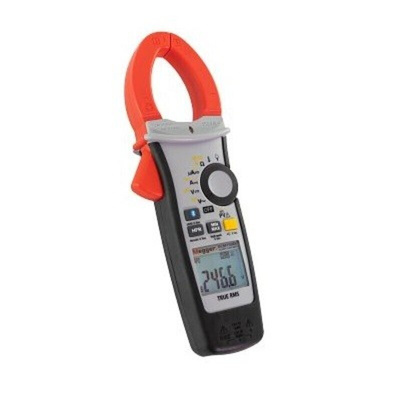

1013-357, Megger DCM1500S Clamp Meter, 1500A dc, Max Current 1500A ac CAT CAT III, CAT IV

DCM1500S Solar Clamp Meter

Get your solar installation up and running in a jiffy with this clamp meter from Megger. It measures the volts, resistance, current and frequency of both photovoltaic and standard electrical circuits. This makes it a handy tool for maintenance, fault-finding and monitoring. To cut down on the chance of your hand coming into contact with live wires, the unit has a tactile barrier below its jaws. An integrated automatic torch conveniently lights up dark corners. The product comes with a hard carry case to take care of safe storage and transportation.
The Megger DCM1500S is a versatile AC/DC clamp meter designed for use with solar/photovoltaic (PV) systems and other electrical equipment. It can measure a wide range of electrical parameters, including:

Voltage: Up to 2000 V DC and 1500 V AC (using the PVHV Leads)
Current: Up to 1500 A AC or DC
Resistance: Up to 40 MΩ
Diode: Up to 2 V
Capacitance: Up to 100 mF
Frequency: Up to 100 kHz
Temperature: -40°C to 1000°C (-40°F to 1832°F)

Features and benefits

• Suitable to use with motors, thanks to the inrush current measurement function
• Large backlit display is easy to read
• Test leads and thermocouple probe included for out-of-the-box operation
• Smart Hold technology conveniently uses an audible tone to monitor measurement increases
• An automatic torch in the jaw to help you see what you are doing
• A tactile barrier below the jaws to help keep your hands safe when measuring current on live conductors
• Bluetooth connectivity so you can monitor measurements remotely using the Megger Link App
• An auto power off function to conserve battery life
• True RMS technology for accurate measurements, even on distorted waveforms
• 6000 Count digital display
• Data logger (up to 4000 sample values)
• Manual save mode
• Frequency counter
• Auto selecting 1500A AC/DC current measurement
• ohms/continuity test
• Continuity Beeper
• Non-contact volt alert
• DCA auto-zeroing button
• High frequency noise rejection filter
• Lo Z AC/DC voltage
• Auto power off (APO)
• CAT IV 600V, III 1000V Rating
• Drop-tested - it can withstand a drop of 1.2 meters onto a hard floor

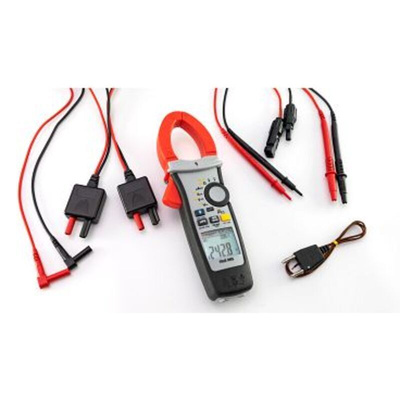

Supplied with

DCM 4mm Lead Set (inc probes and Crocodile Clips)
TP-100 Temperature Probe
PVHV1 Lead (4mm Plugs)
PVHV2 Lead (MC4 PV Plugs)
2 x AA Batteries
Carry Case

Datasheet - 1013-357
