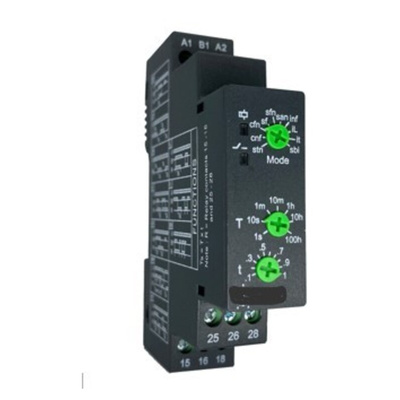

RS PRO DIN Rail Mount Timer Relay, 12 → 240V ac, 2-Contact, 0.1s to 100h, DPDT

RS PRO DPDT Multi-Function Timer Relay

RS PRO continues to increase its range of timer relays and is proud to introduce this DPDT multi-function time delay relay. An electronic timer component that's used to control the power flow in circuits at timed intervals.

Control relays play a vital role in today’s electronics, opening, and closing circuits whenever voltage is applied or removed. Timer relays have the added benefit of pre-selected time intervals, which is useful for things like lighting circuits and safety control for large equipment.

Why would you choose this timer relay?

The DPDT series features 12 timing functions, 7 digital timing ranges from 100mS up to 100Hrs. The timing functions include supply voltage triggered and control input triggered options. A Bi-Stable(Step-relay) function is also included.

Features and Benefits

• Supply voltage of 12 to 240 V ac/dc


• DIN-rail mounting


• 12 timing functions


• Maximum current of 8 A


• External power supply


• DPDT contact configuration


• Screw terminal type


• Dual LED indication with flashing LED while timing


• Time range of 0.1 s to 100 h


• 90 mm (depth) x 66 mm (width) x 18 mm (length)


• Operating temperature range of -20°C to +60 °C


• Time increments in hours, minutes and seconds


• Degree of protection terminals has IP20, front-plate has IP40 and housing has IP30
