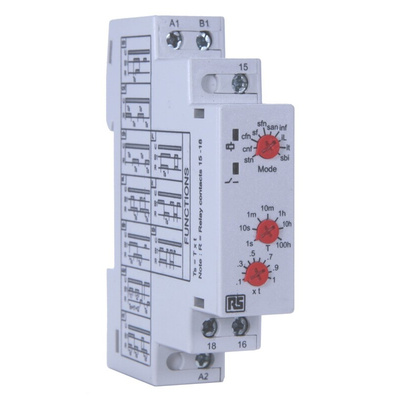

RS PRO DIN Rail Mount Timer Relay, 12 → 240V ac, 1-Contact, 0.1s to 100h, SPDT

RS PRO SPDT Multi-Function Time Relay

This SPDT (single pole double throw) time delay relay from the RS PRO range is an electromagnetic component that's used to control the power flow in circuits at timed intervals.
Control relays play a vital role in today’s electronics, opening and closing circuits whenever voltage is applied or removed. Timer relays have the added benefit of pre-selected time intervals, which is useful for things like lighting circuits and safety control for large equipment.

Why would you choose this timer relay?

This multi-function relay has a comprehensive range of timing functions and counts in hours, minutes and seconds. It uses a voltage input, which initiates the unit whenever a trigger signal is applied. The product has a DIN rail mount, so it's easy to fit onto a rack. These features combine to form a highly versatile timer relay that provides low-maintenance, customisable circuit control.

Features and Benefits

• Supply voltage of 12 to 240 V ac/dc


• DIN-rail mounting


• 12 timing functions


• Maximum current of 16 A


• External power supply


• SPDT contact configuration (single pole, double throw)


• Screw terminal type


• Dual LED indication with flashing LED while timing


• Time range of 0.1 s to 100 h


• 90 mm (depth) x 66 mm (width) x 18 mm (length)


• Operating temperature range of -20°C to +60 °C


• Time increments in hours, minutes and seconds


• Degree of protection terminals has IP20, front-plate has IP40 and housing has IP30
